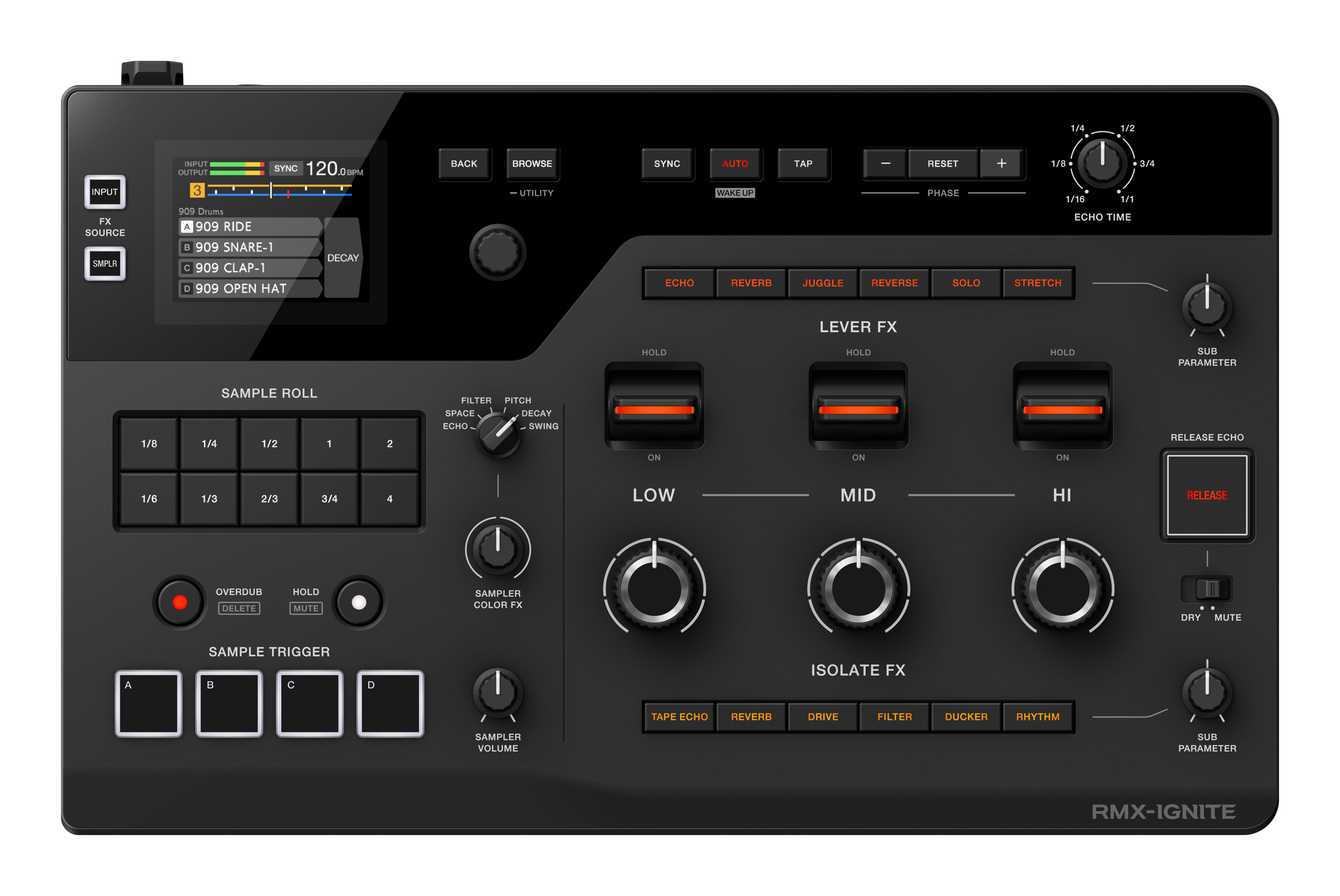

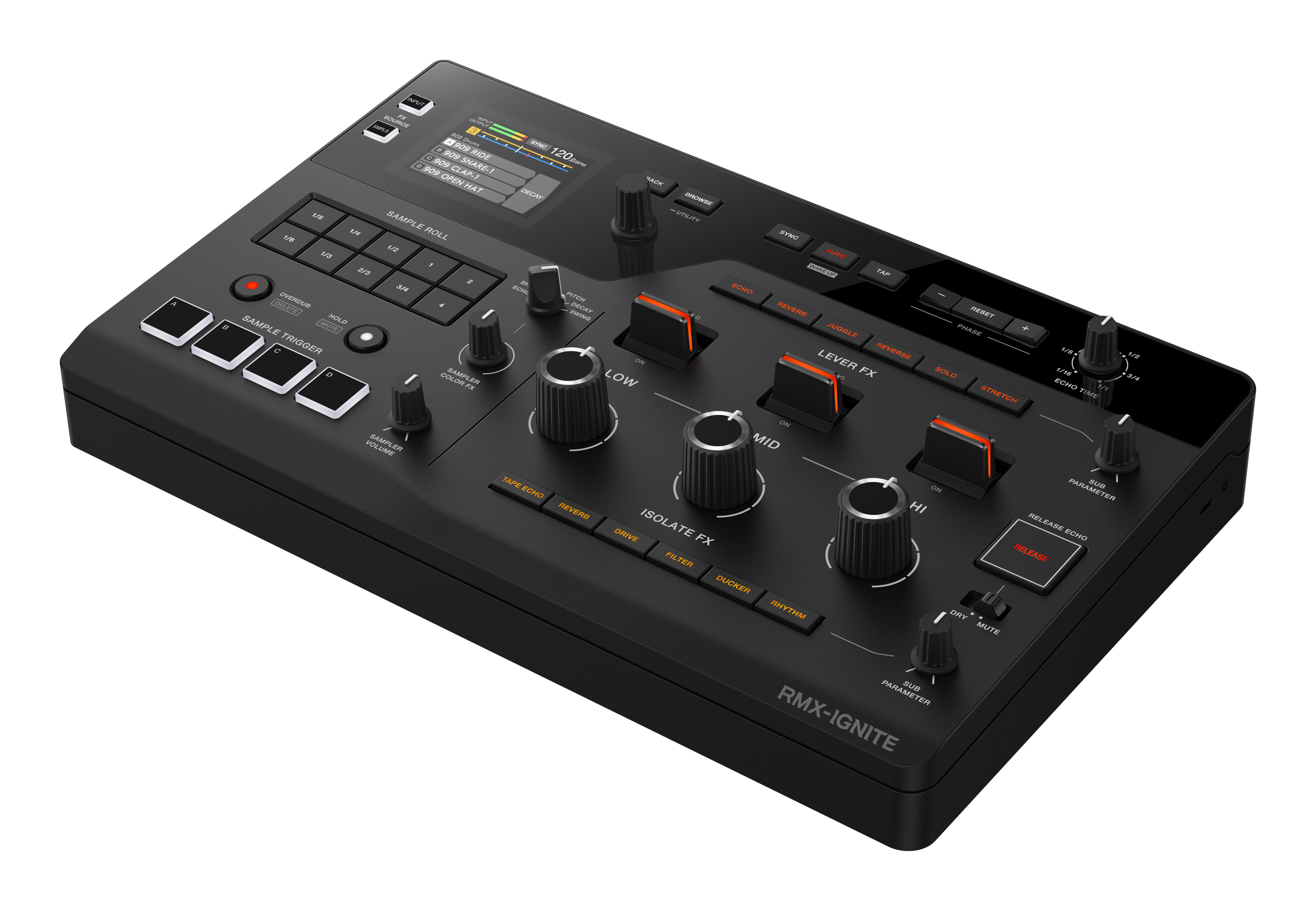

RMX-IGNITE
Refined layout and design
Engineered for clarity and precision, the interface supports your creativity.
Get the crowd moving
Energize your sound with expressive, hands-on control. Maximize every nuance of the music through advanced effects.

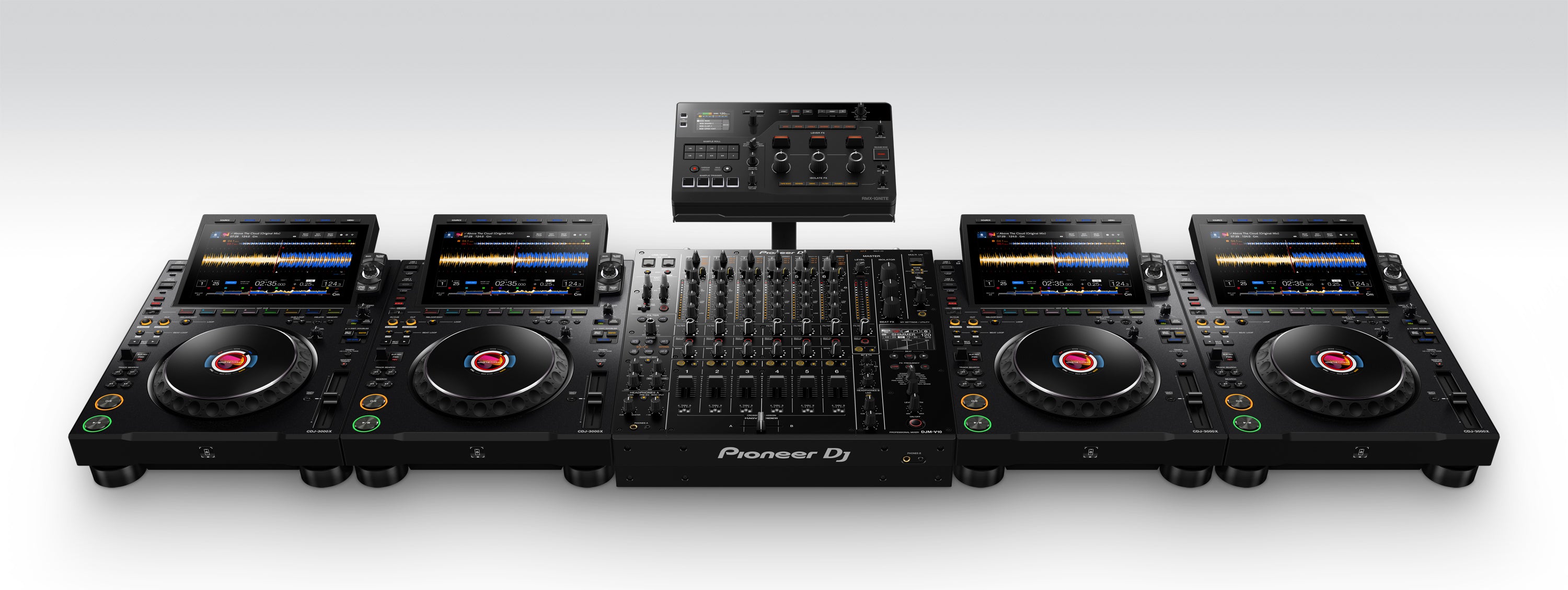

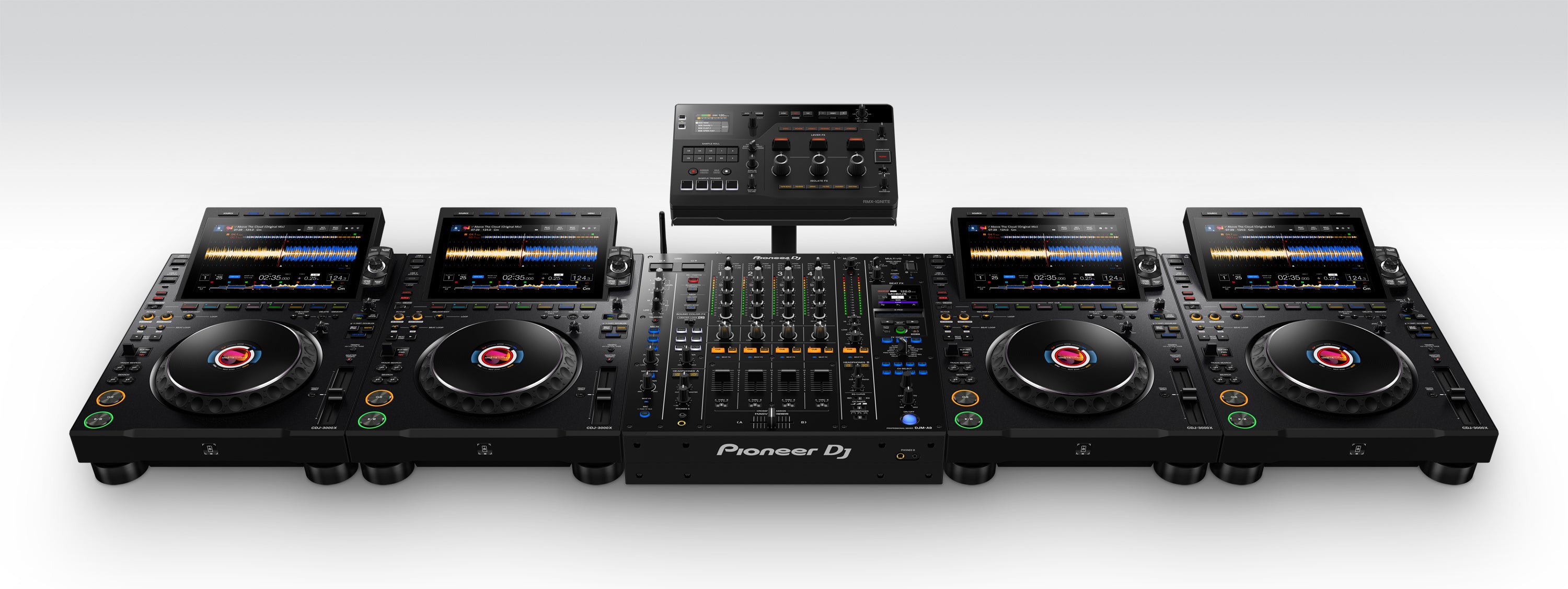

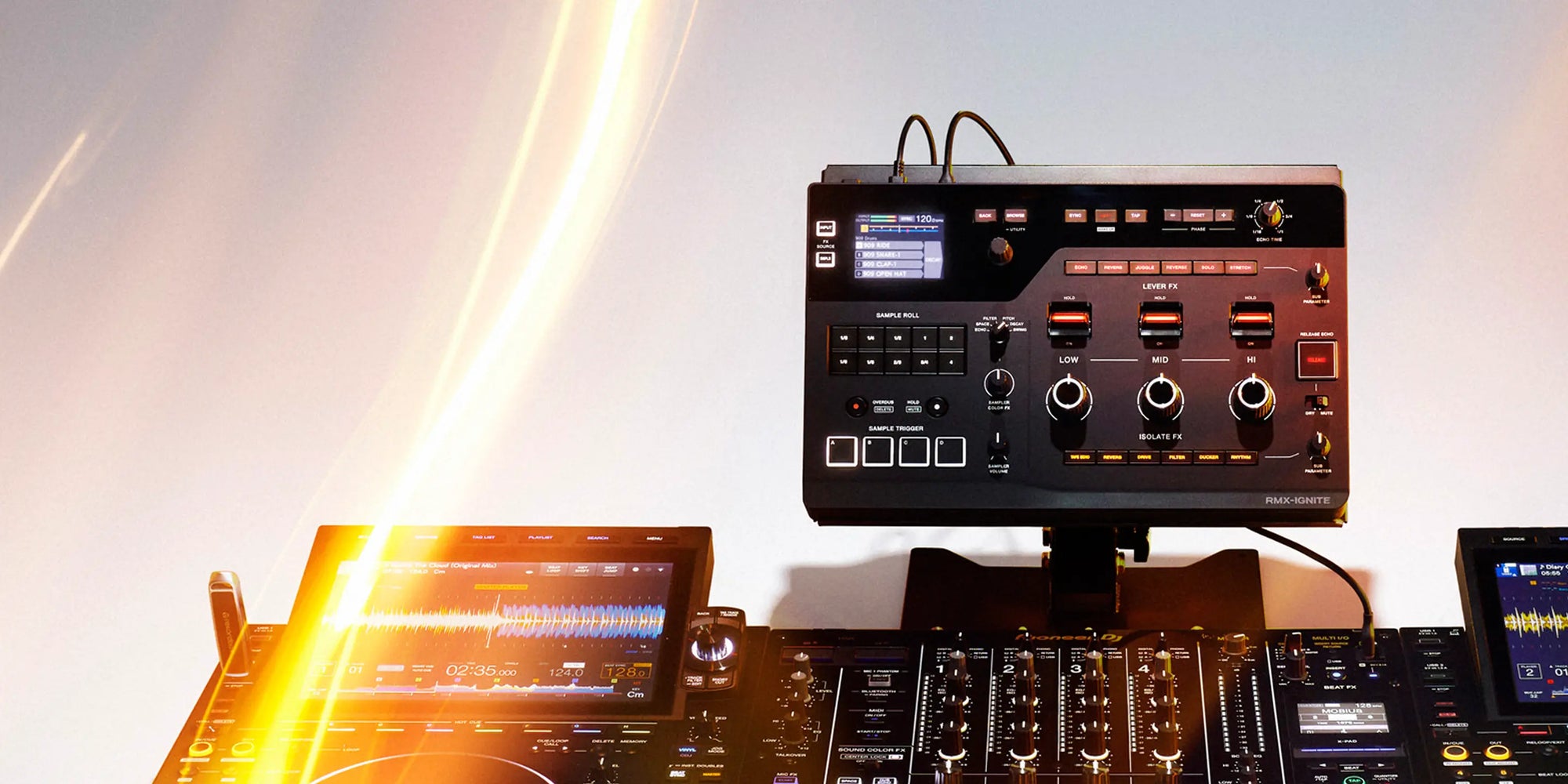

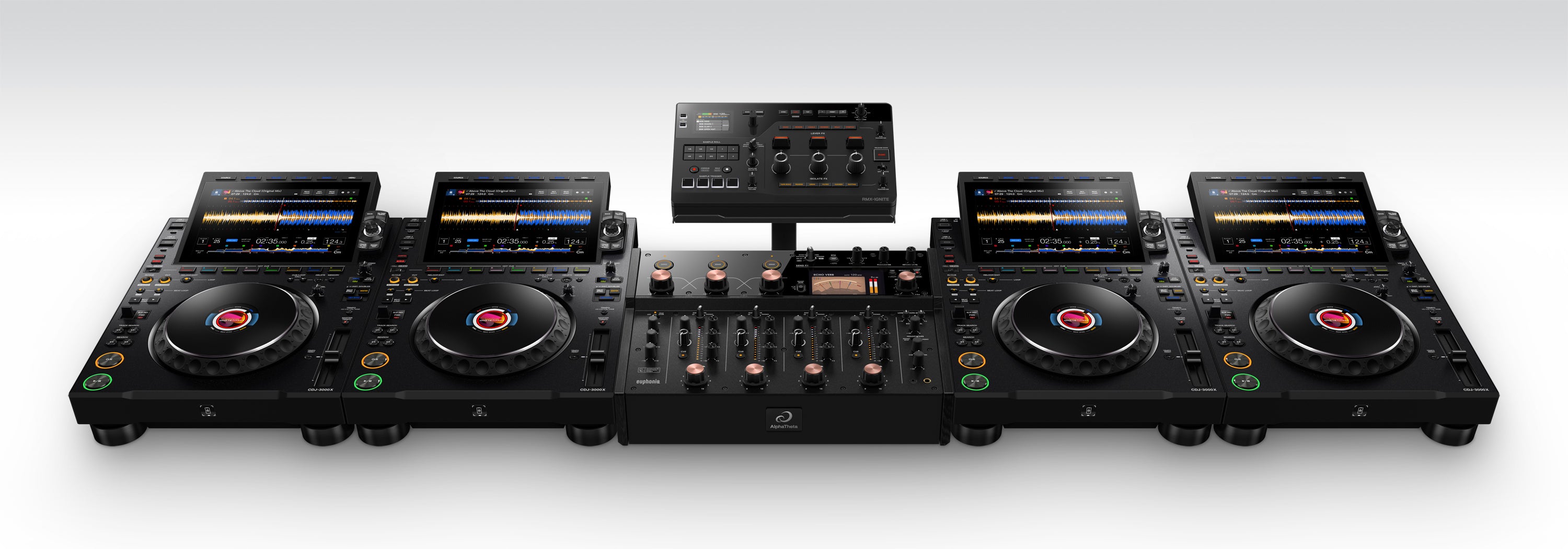

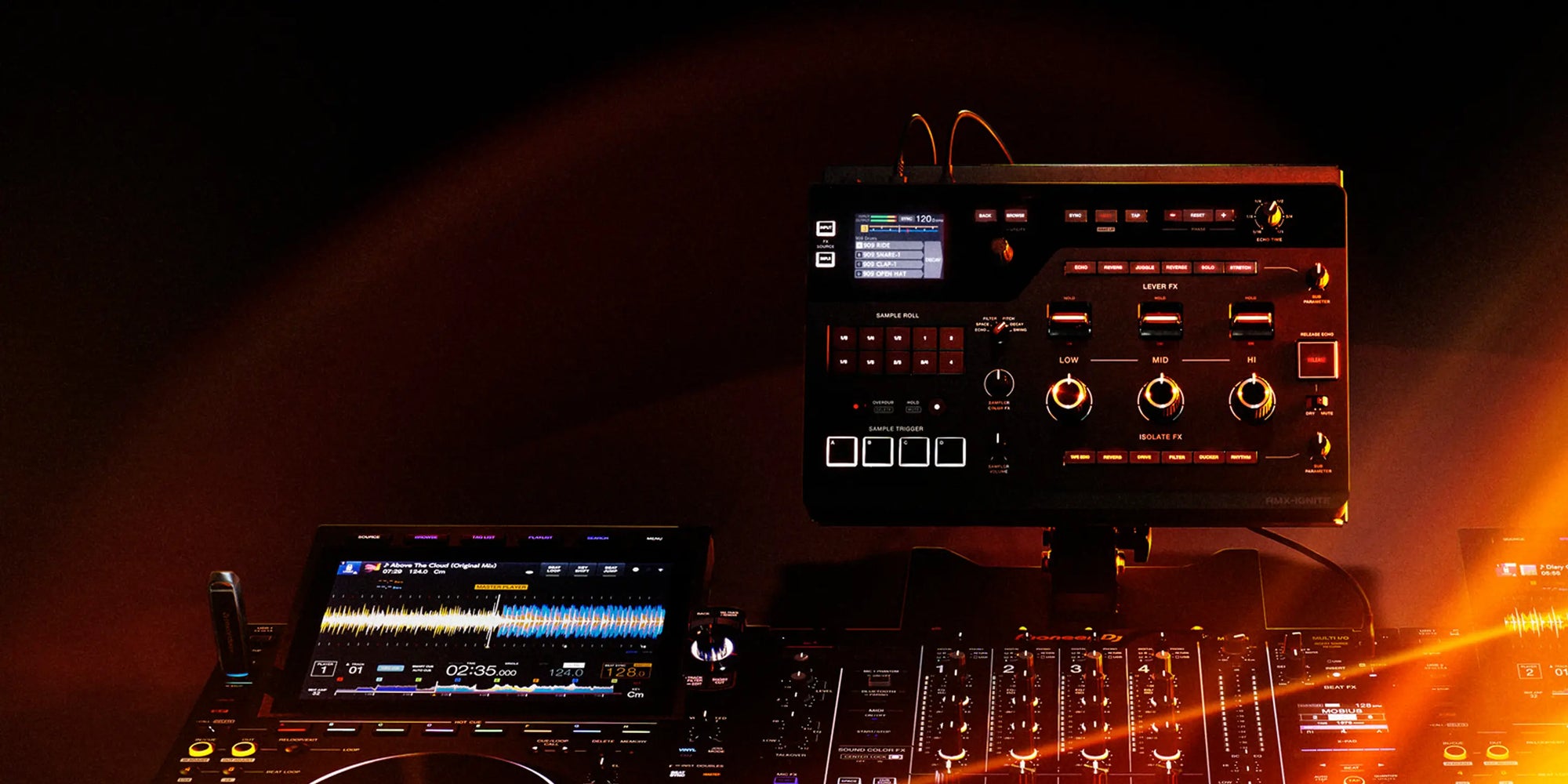

Pads, knobs, and faders blend into 1 layout. With your CDJs, mixer, and other gear aligned, your setup becomes a single instrument at your fingertips.

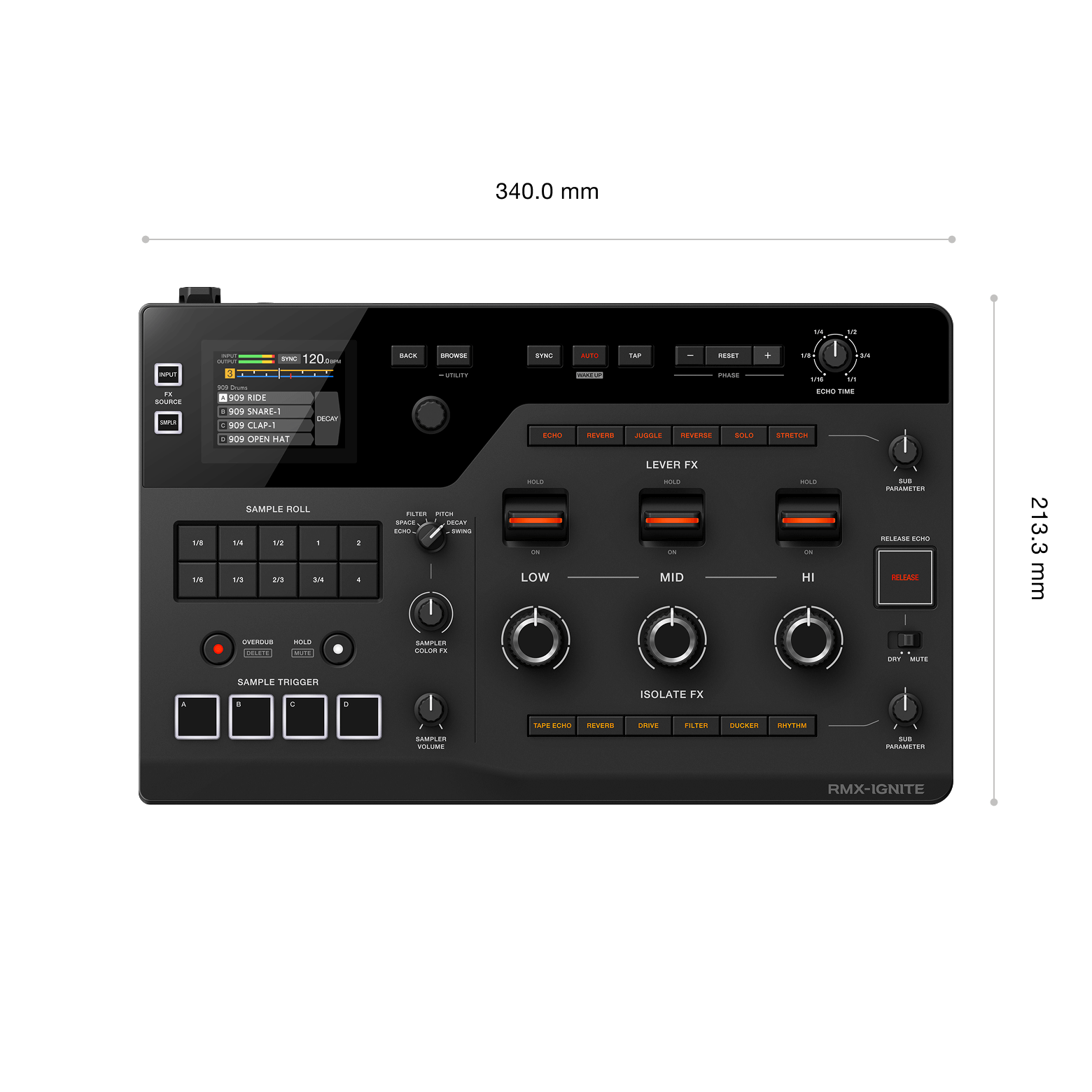

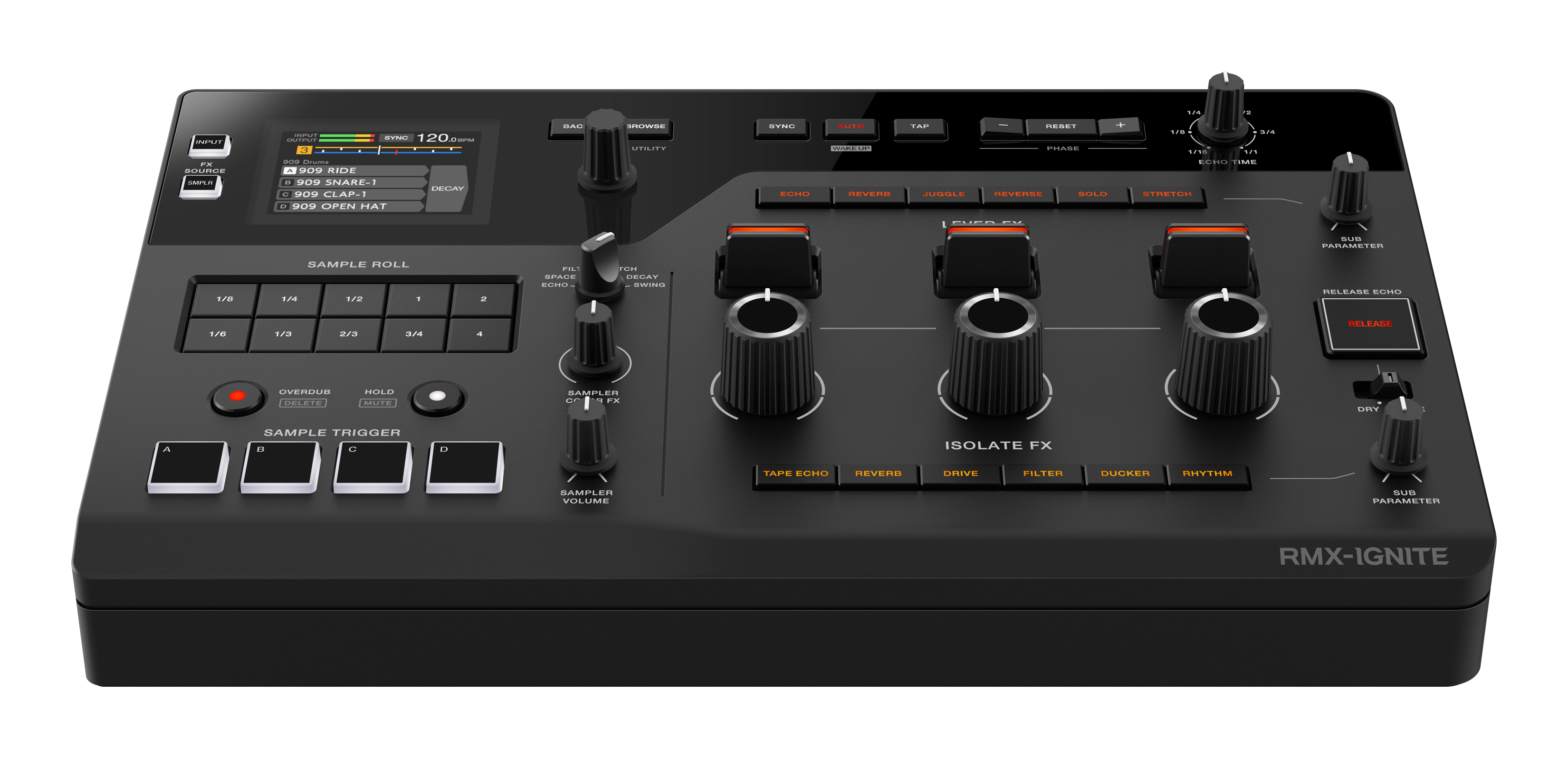

All-Around View

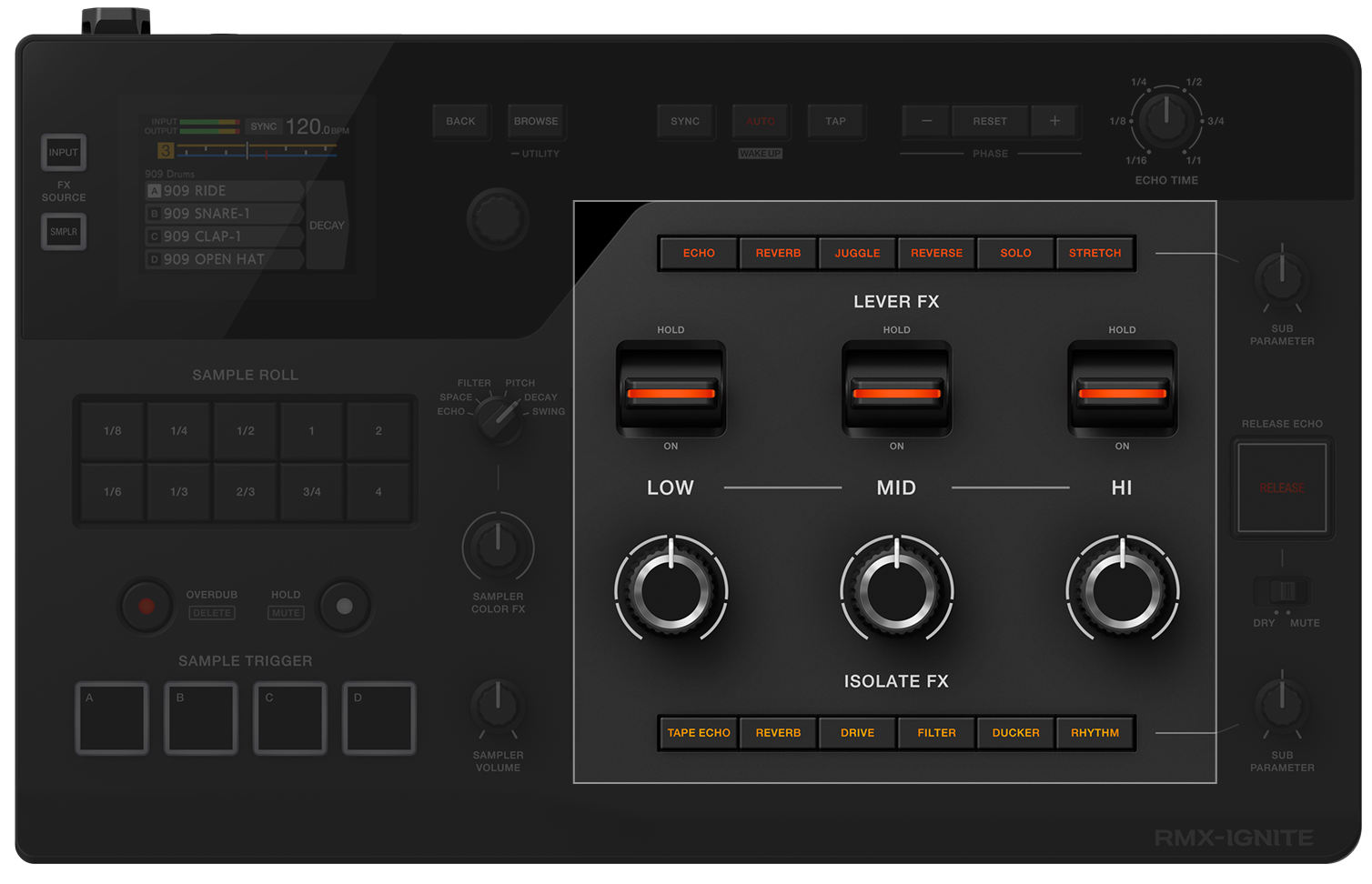

The 3-Band FX section includes Lever FX and Isolate FX, and you can apply each to the high, mid, or low frequency bands.
Combining the 2 effect types opens diverse performance options and, with the sub-parameter knobs, you can refine the tone for richer, more expressive sounds.

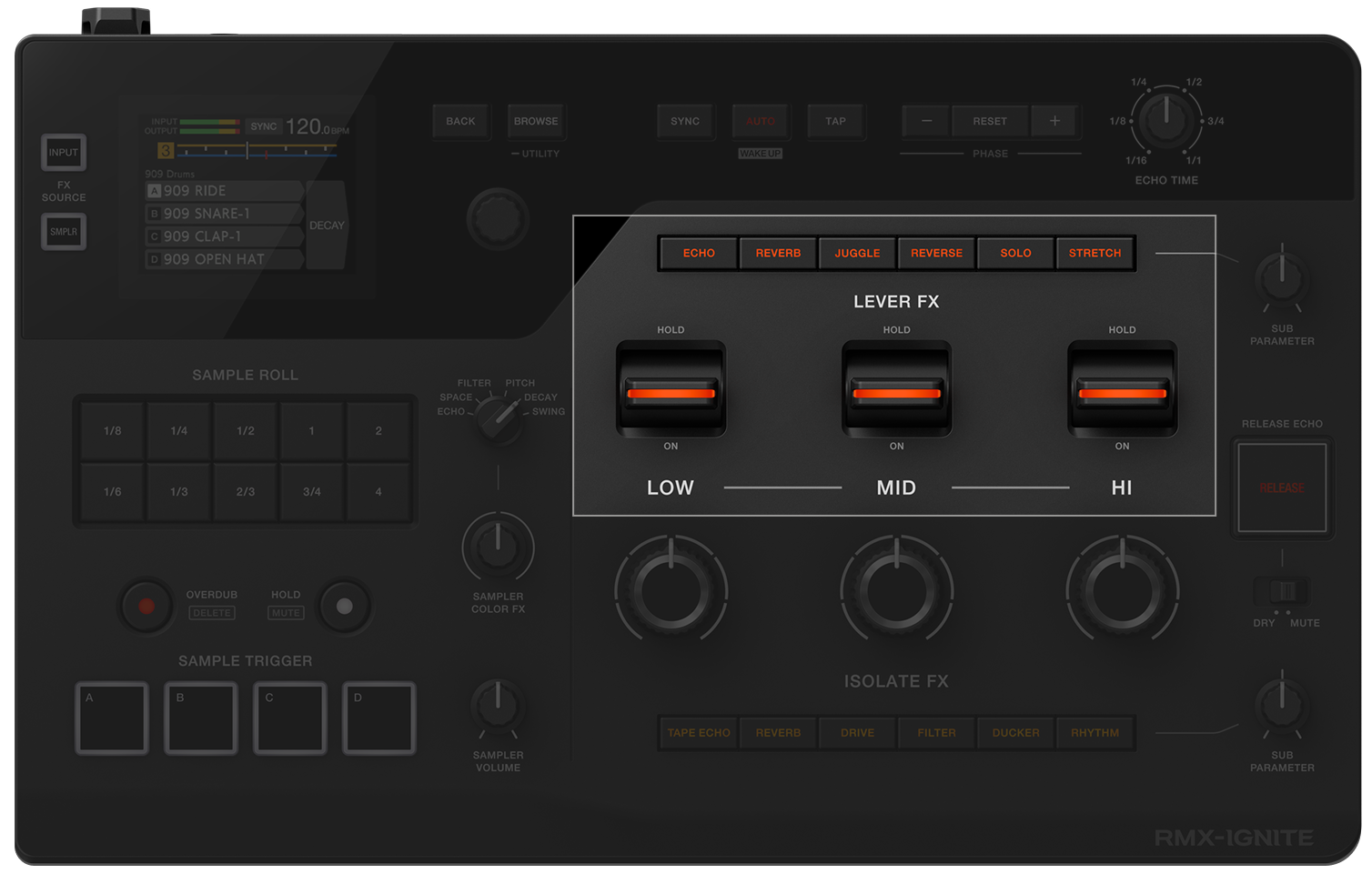

Use the 3 large levers to apply instant, dramatic effects: Echo, Reverb, Juggle, Reverse, Solo, and Stretch.

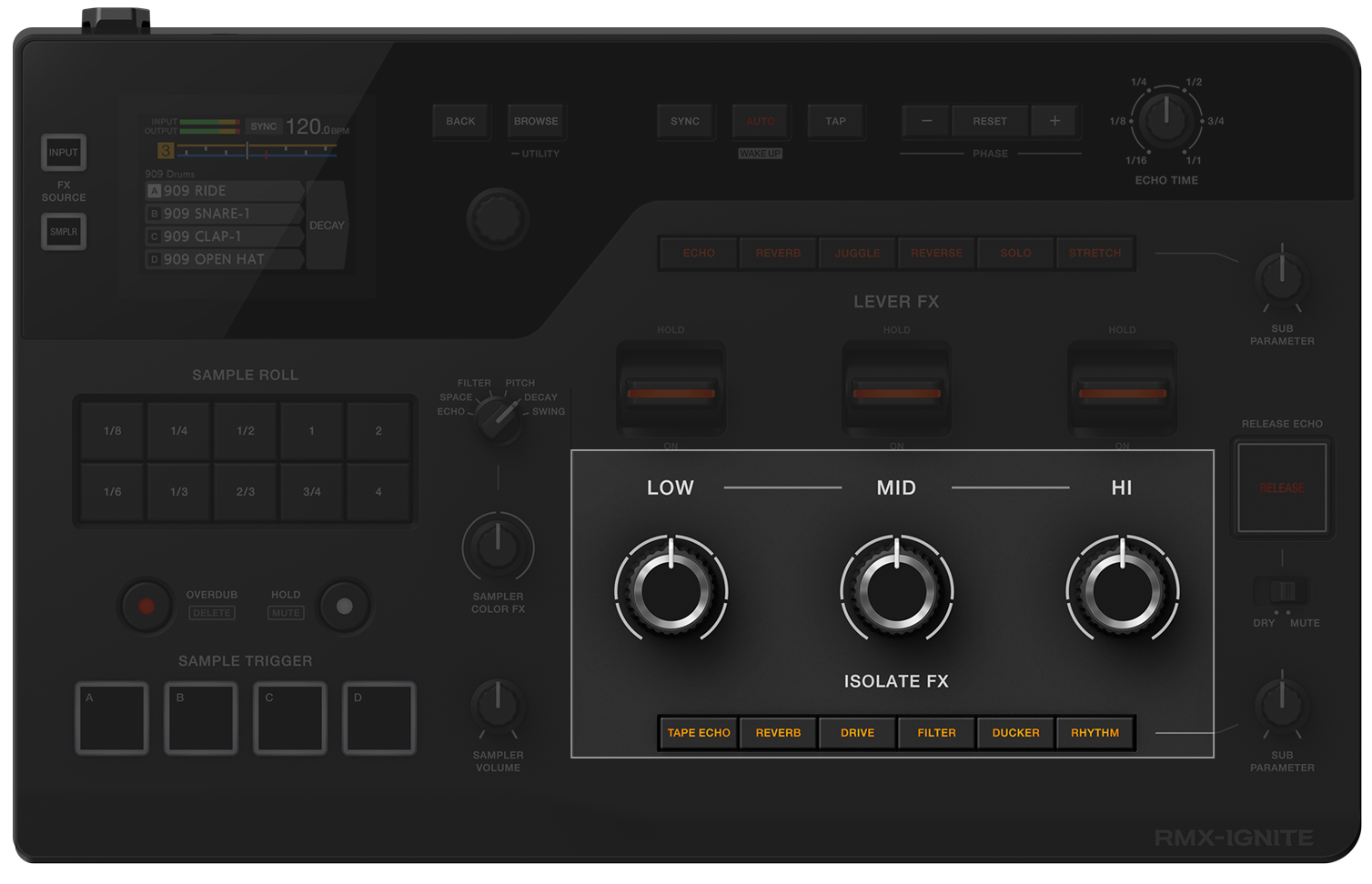

3 large knobs enable smooth and dynamic control of Tape Echo, Reverb, Drive, Filter, Ducker, and Rhythm.

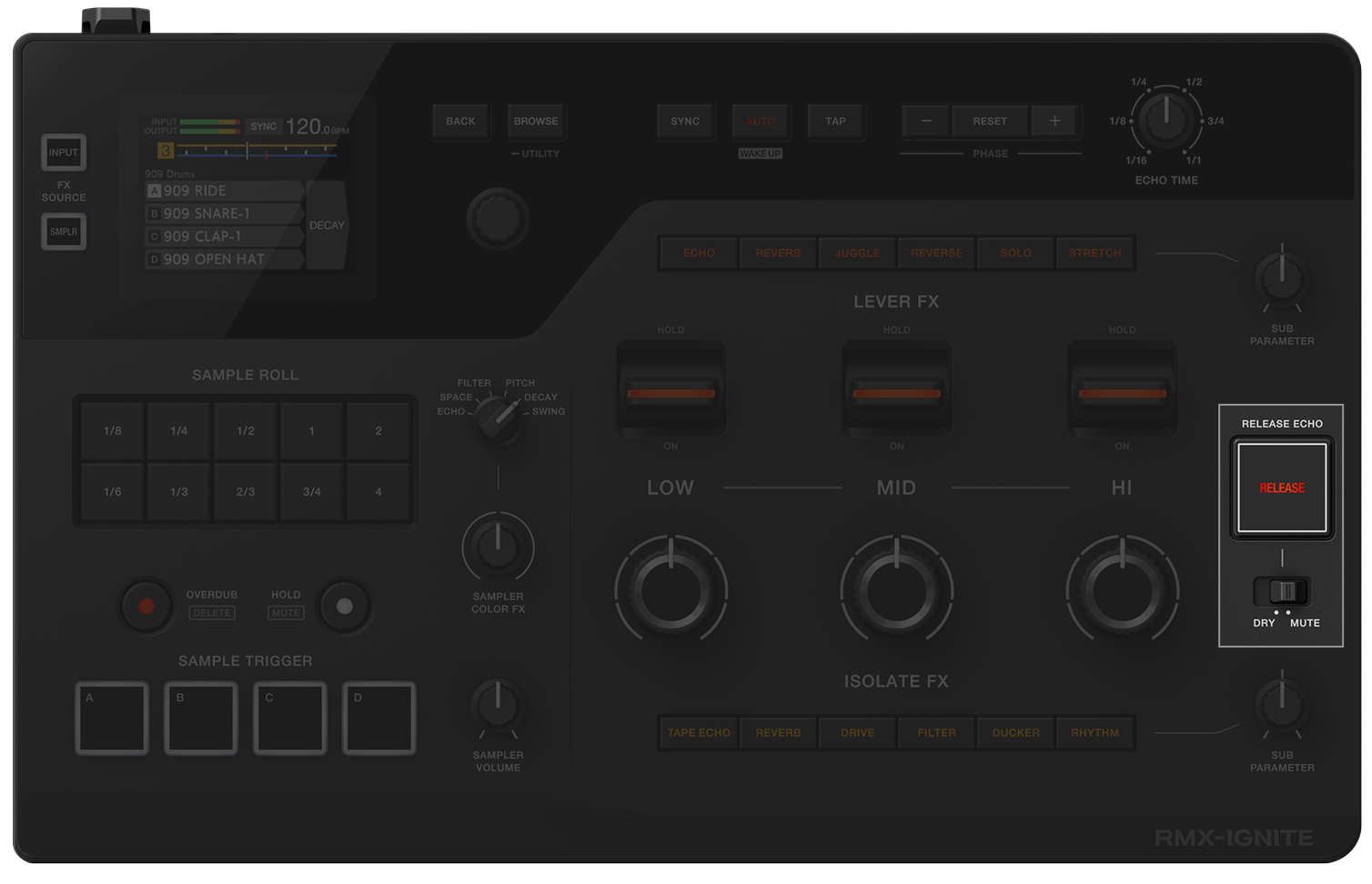

With a single button, you can instantly clear effects and samples, returning smoothly to the original track with an echo tail.

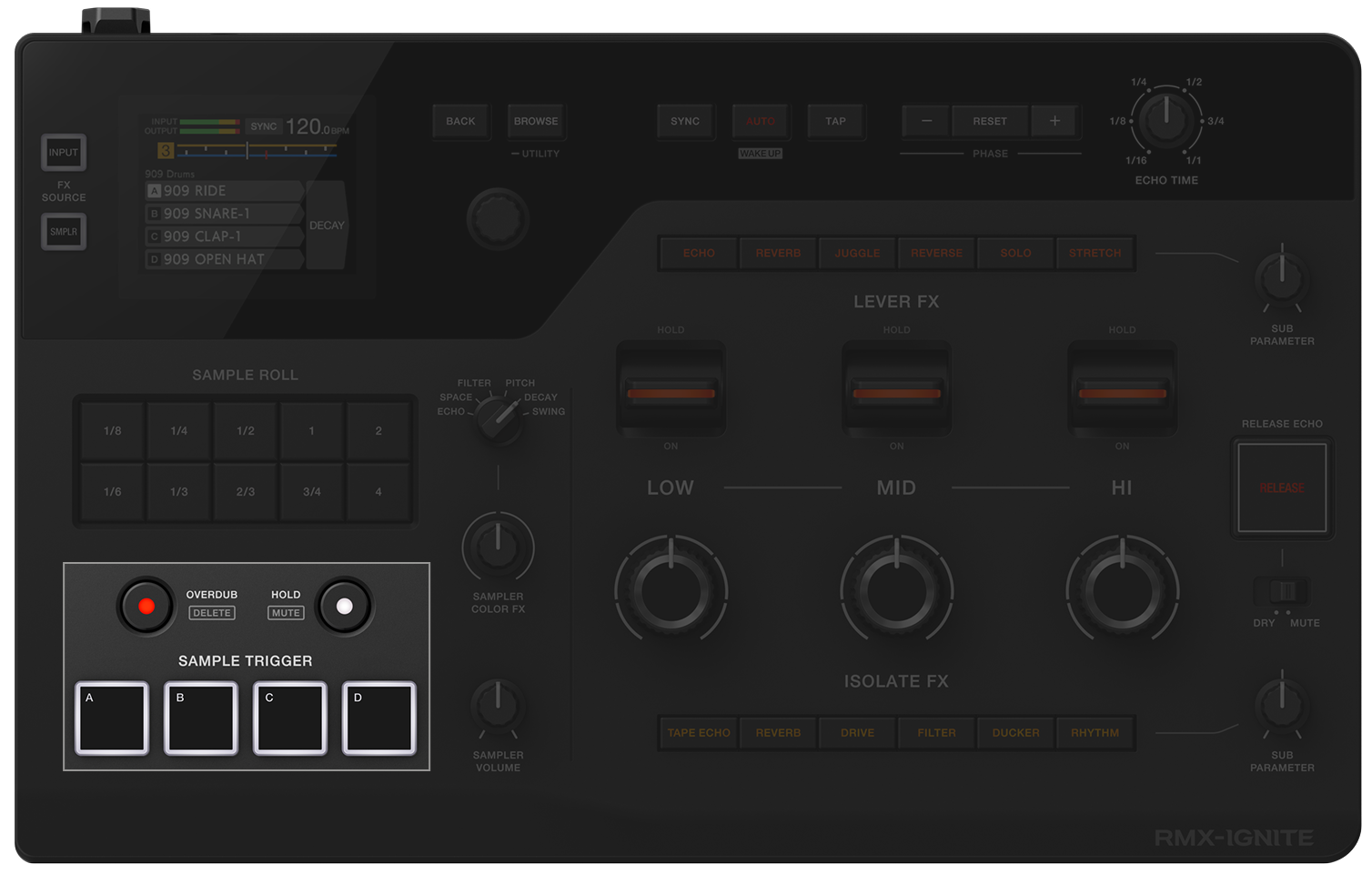

Use the 4 responsive pads to intuitively trigger 20 built-in samples from Loopmasters. In Overdub mode, you can loop 1-bar phrases and layer samples to build dynamic progressions.

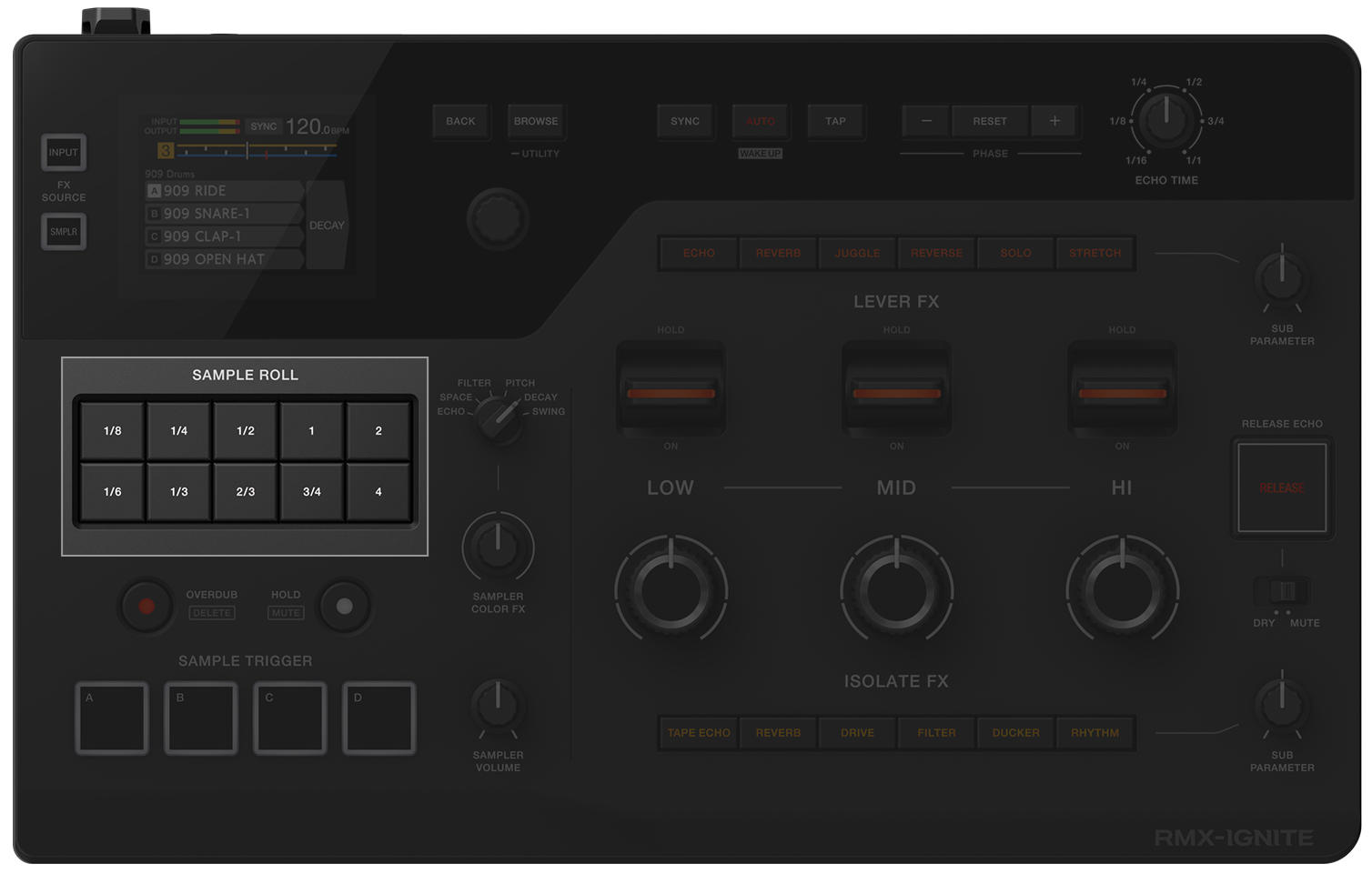

Samples triggered with the pads can be rolled in 10 patterns. With the new Groove Roll, you can press multiple buttons at once to create accented, flowing rolls that show your individuality and bring energy to your buildups.

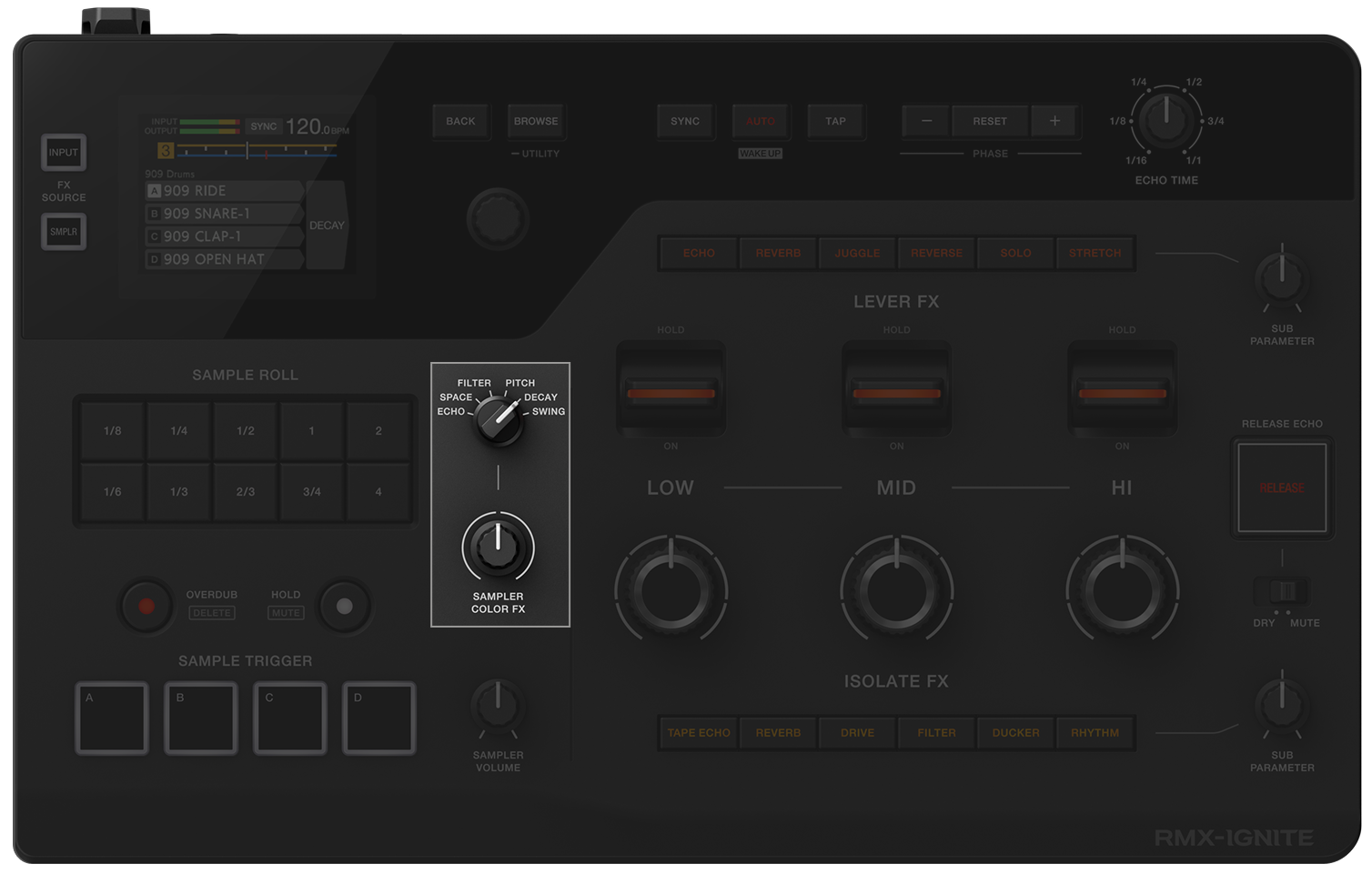

Control 6 dedicated effects – Echo, Space, Filter, Pitch, Decay, and Swing – with 1 knob to instantly reshape samples with added depth or groove.
Play your own samples from a USB drive or any PRO DJ LINK–connected multi player.

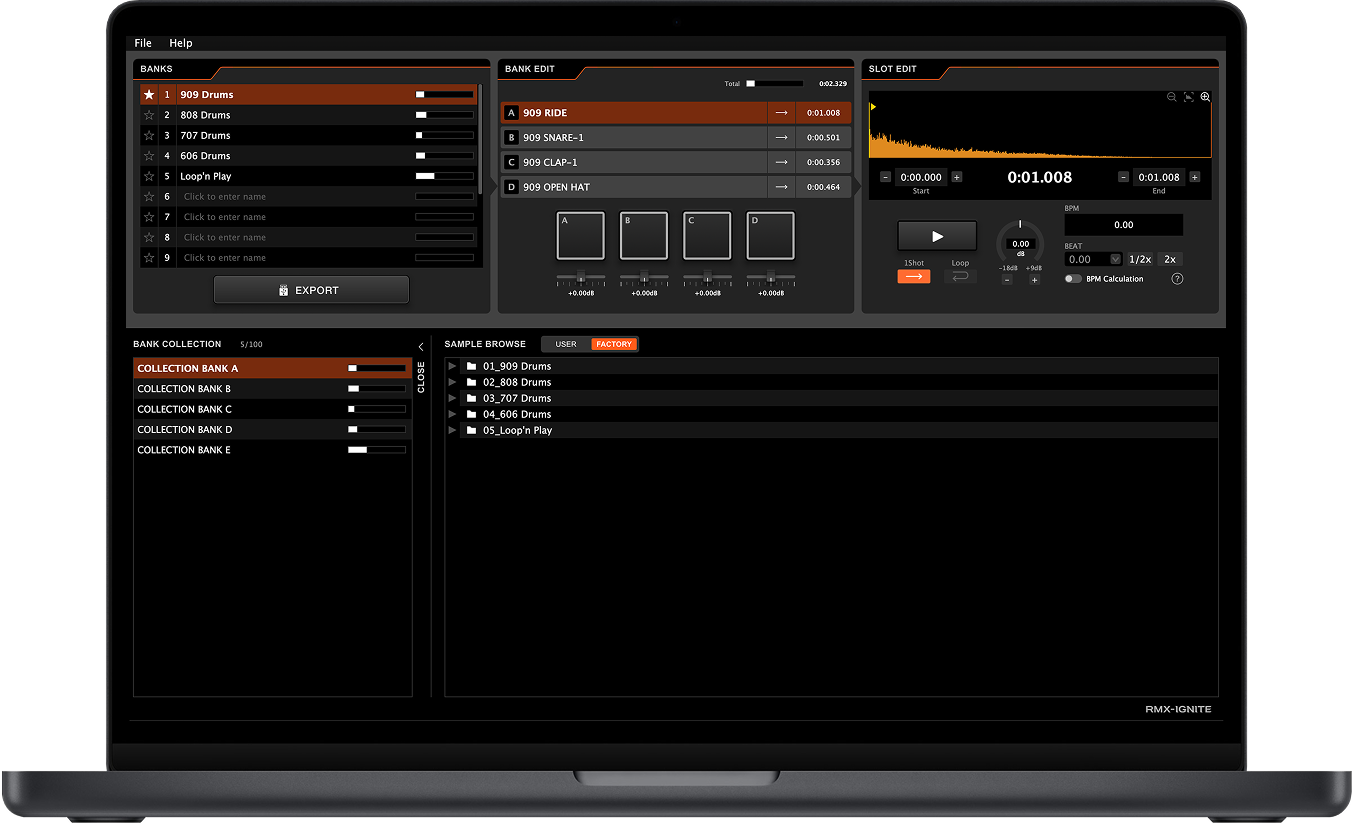

Download RMX-IGNITE Sample Manager
3 months FREE Loopcloud campaign
The 3-Band FX section includes Lever FX and Isolate FX, and you can apply each to the high, mid, or low frequency bands.
Combining the 2 effect types opens diverse performance options and, with the sub-parameter knobs, you can refine the tone for richer, more expressive sounds.
Use the 3 large levers to apply instant, dramatic effects: Echo, Reverb, Juggle, Reverse, Solo, and Stretch.
3 large knobs enable smooth and dynamic control of Tape Echo, Reverb, Drive, Filter, Ducker, and Rhythm.
With a single button, you can instantly clear effects and samples, returning smoothly to the original track with an echo tail.
Use the 4 responsive pads to intuitively trigger 20 built-in samples from Loopmasters. In Overdub mode, you can loop 1-bar phrases and layer samples to build dynamic progressions.
Samples triggered with the pads can be rolled in 10 patterns. With the new Groove Roll, you can press multiple buttons at once to create accented, flowing rolls that show your individuality and bring energy to your buildups.
Control 6 dedicated effects – Echo, Space, Filter, Pitch, Decay, and Swing – with 1 knob to instantly reshape samples with added depth or groove.
Play your own samples from a USB drive or any PRO DJ LINK–connected multi player.
Download RMX-IGNITE Sample Manager
3 months FREE Loopcloud campaign

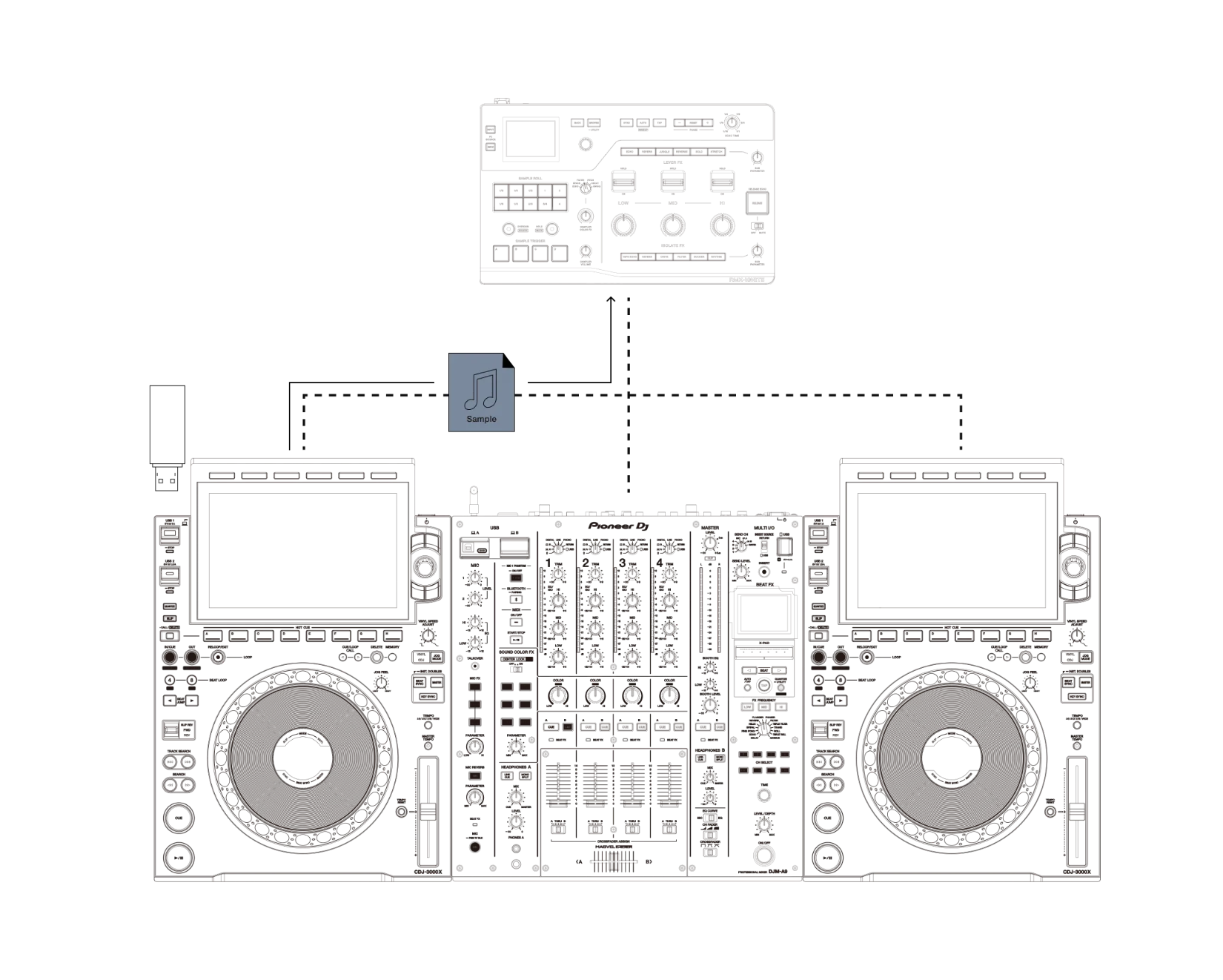

Digital send/return
Quick setup means you can start playing right away. Simply connect a USB cable to your mixer’s MULTI I/O terminal. (DJM-A9 & DJM-V10 compatible)
01. No risk of connection errors.
02. Sound quality does not degrade.
03. Receives non-audio data, including BPM and grid information.
Sample playback
Load samples directly from PRO DJ LINK–connected players without dedicated sample storage. BPM and grid information are synced automatically.

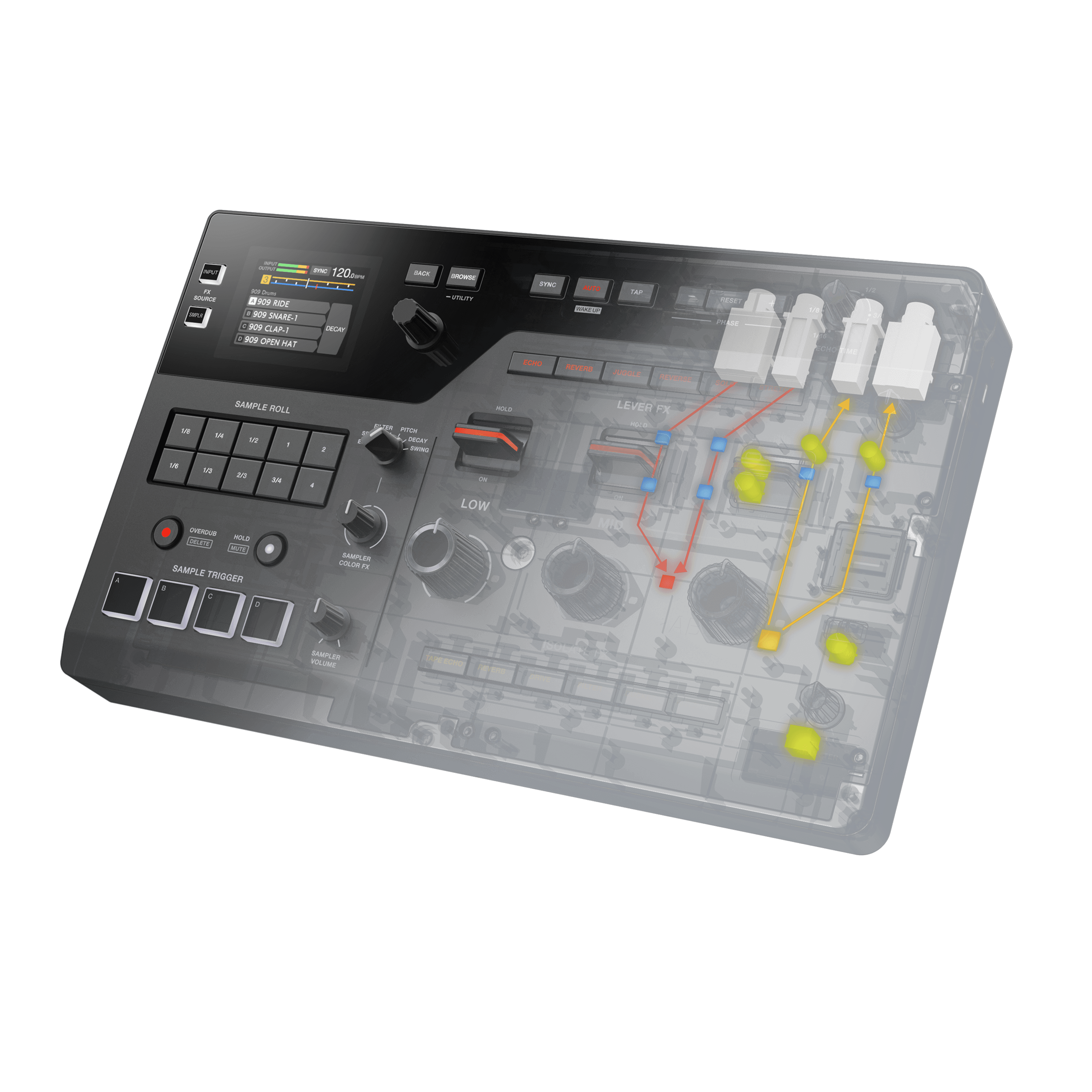

High-fidelity design
Studio-quality 96 kHz / 64-bit DSP and ESS 32-bit AD/DA converters reproduce the music with striking clarity and depth. Every component is tuned to let the original sound breathe, capturing subtle details and expression. What you hear is true to the source, the moment, and your touch.
ES9821Q (32bit, 120dB)
ES9017S (32bit, 120dB) 4ch sum 124 dB
96kHz/64bit
Specifications
AC 100 V – 240 V, 50 Hz / 60 Hz
Power consumptionDC 15 V, 3.0 A
Power consumption (OFF)0.3 W
340.0 × 213.3 × 72.8 mm
2.3 kg
+5 °C – +35 °C
5% – 85% (no condensation)
Audio
96kHz
32 bit
20 Hz – 40 kHz
CONNECTION switch (MST): 115 dB
CONNECTION switch (SEND/RETURN): 114 dB
CONNECTION switch (CDJ): 108 dB
0.0018 %
CONNECTION switch (MST): +4 dBu / +4 dBu
CONNECTION switch (SEND/RETURN): -7.8 dBu / -7.8 dBu
CONNECTION switch (CDJ): -6 dBu / -12 dBu
47 kΩ
680 Ω or less
CONNECTION switch (MST): 21 dBu / 10 kΩ
CONNECTION switch (SEND/RETURN): 12 dBu / 10 kΩ
CONNECTION switch (CDJ): 3 dBu / 10 kΩ

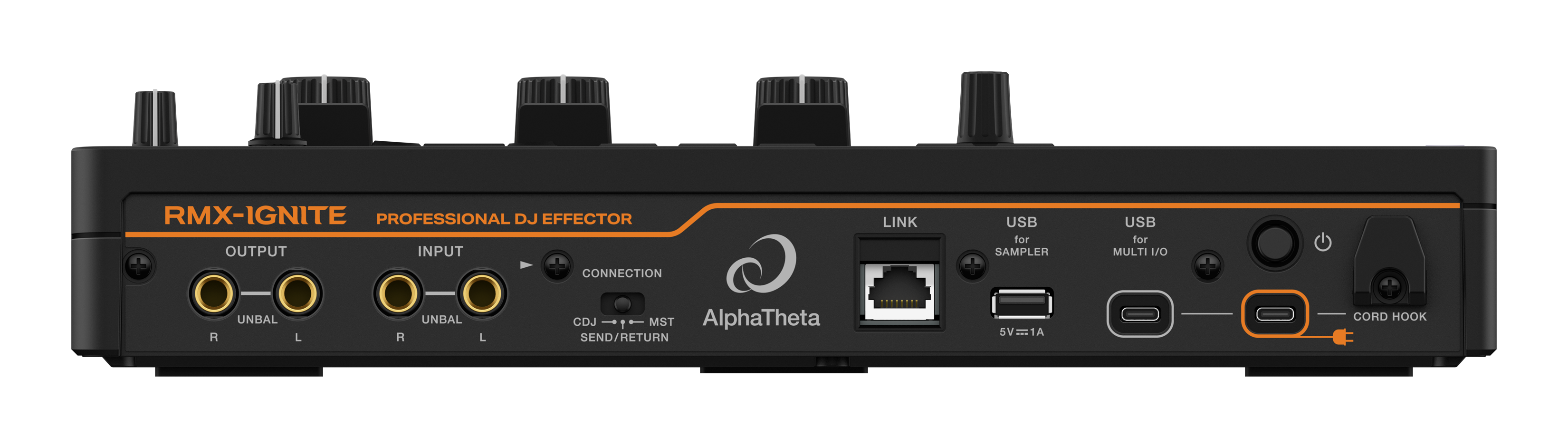

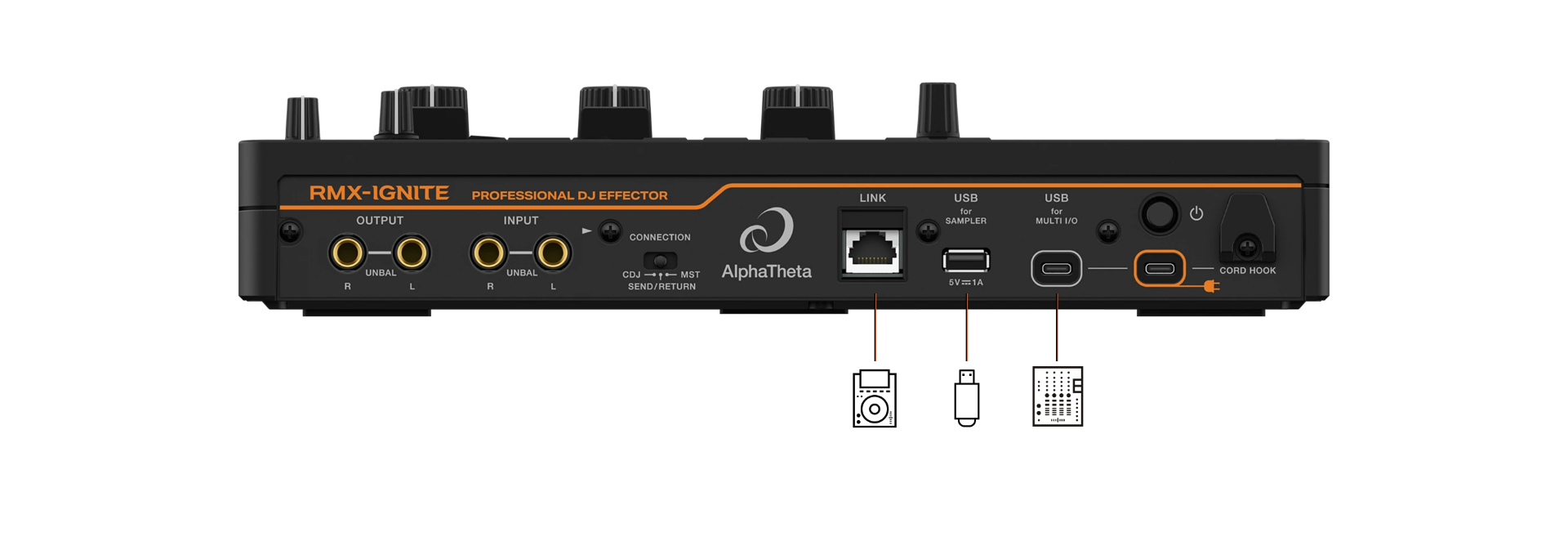

Input / Output terminals
1/4″ TS jack × 1
1/4″ TS jack × 1
1 set (Power supply : 5 V/1 A or less)
2 sets
LAN (100BASE-TX) × 1
Supported file formats
Bit depth: 16 bit / 24 bit
Sapmling frequency: 44.1 kHz / 48 kHz / 88.2 kHz / 96 kHz
Bit depth: 16 bit / 24 bit
Sapmling frequency: 44.1 kHz / 48 kHz / 88.2 kHz / 96 kHz
