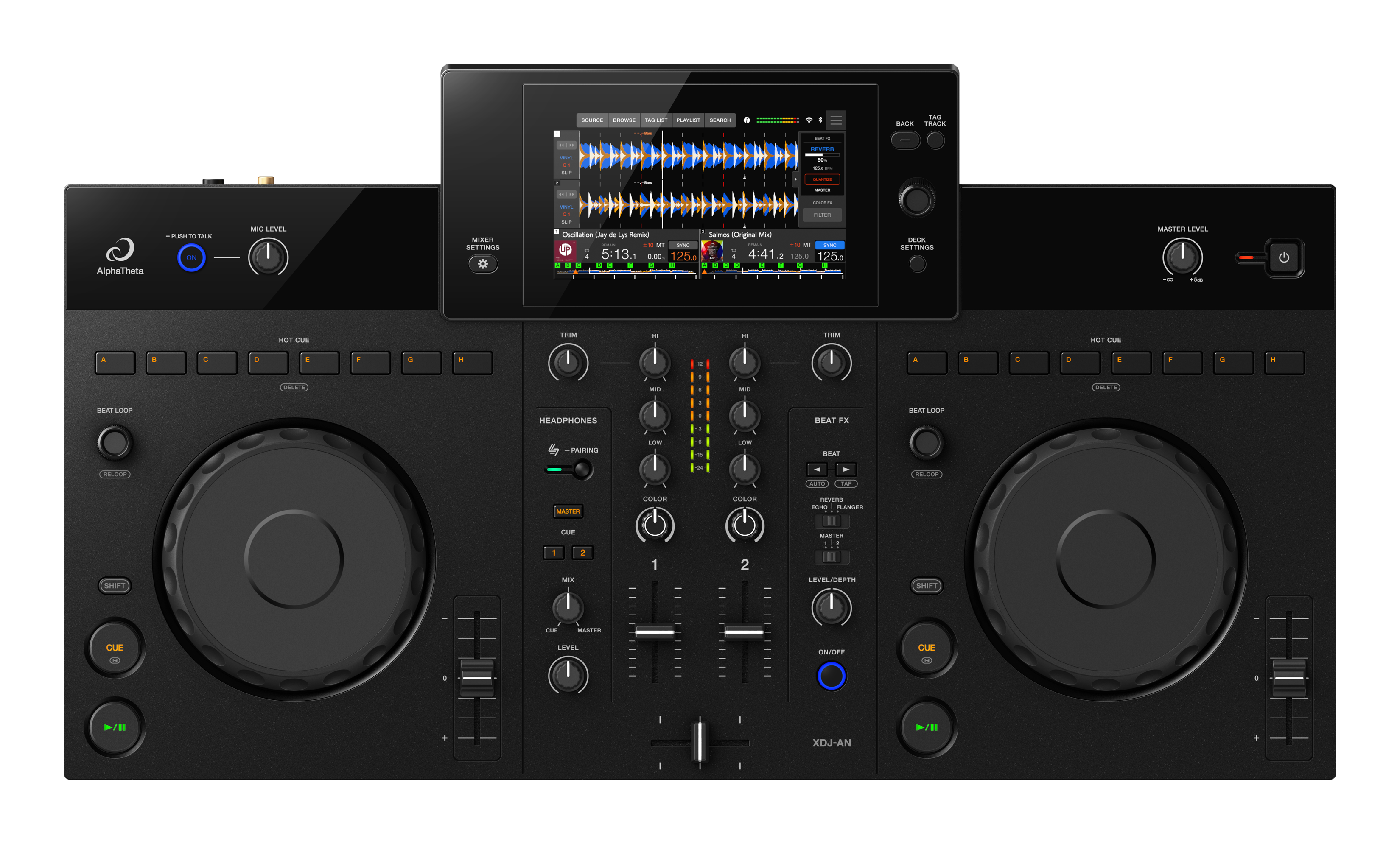

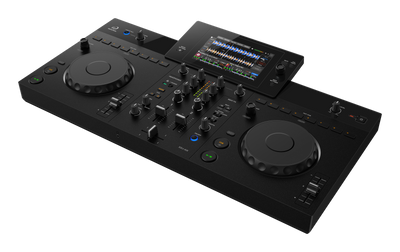

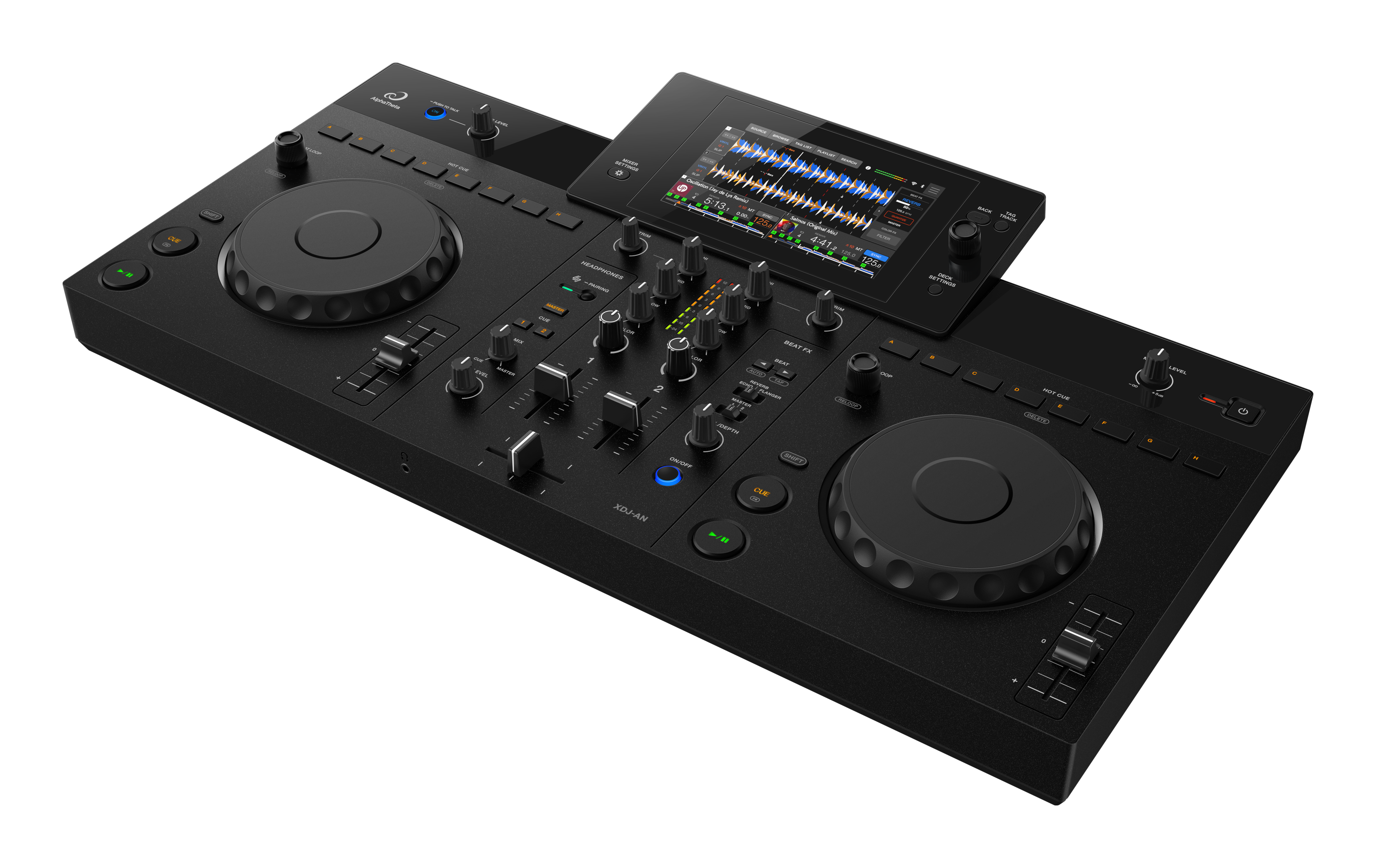

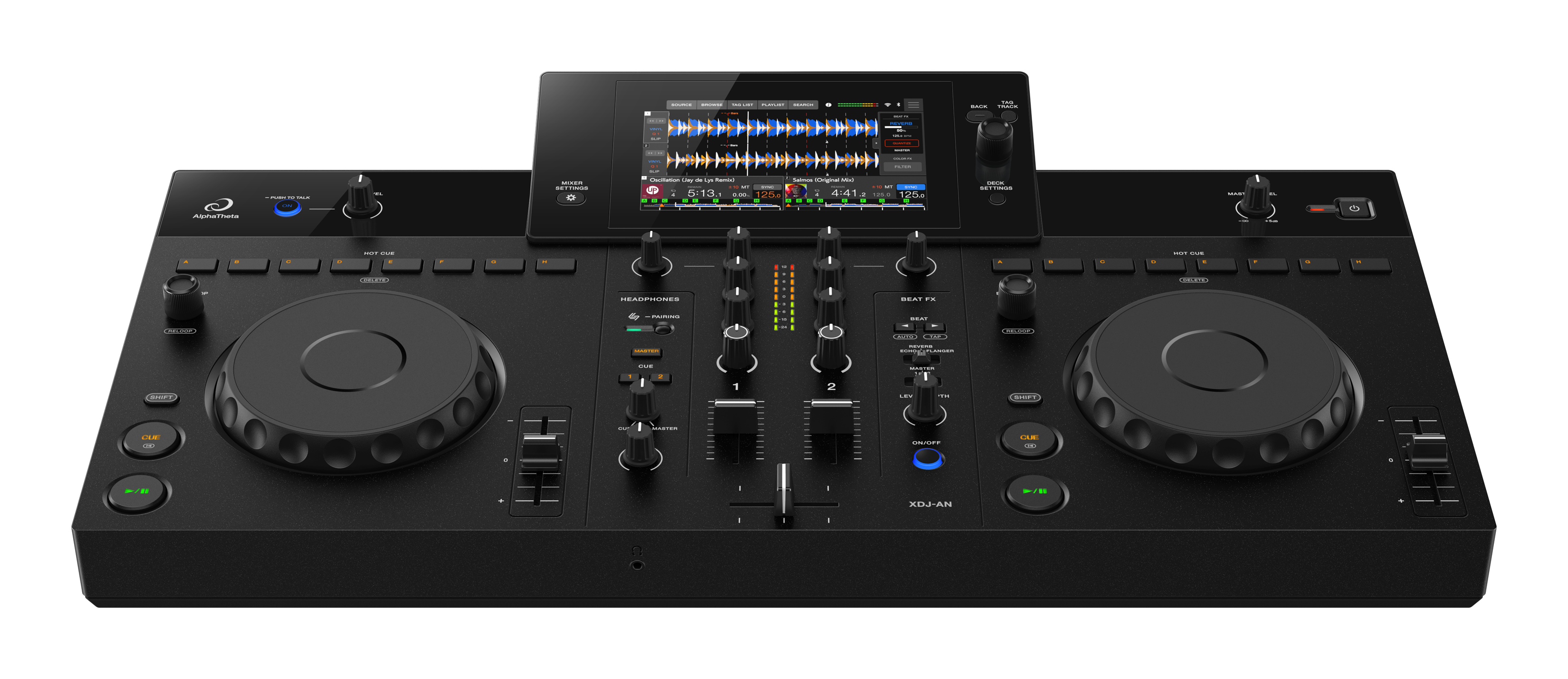

XDJ-AN
PROFESSIONAL ALL-IN-ONE DJ SYSTEM
2-channel all-in-one DJ system

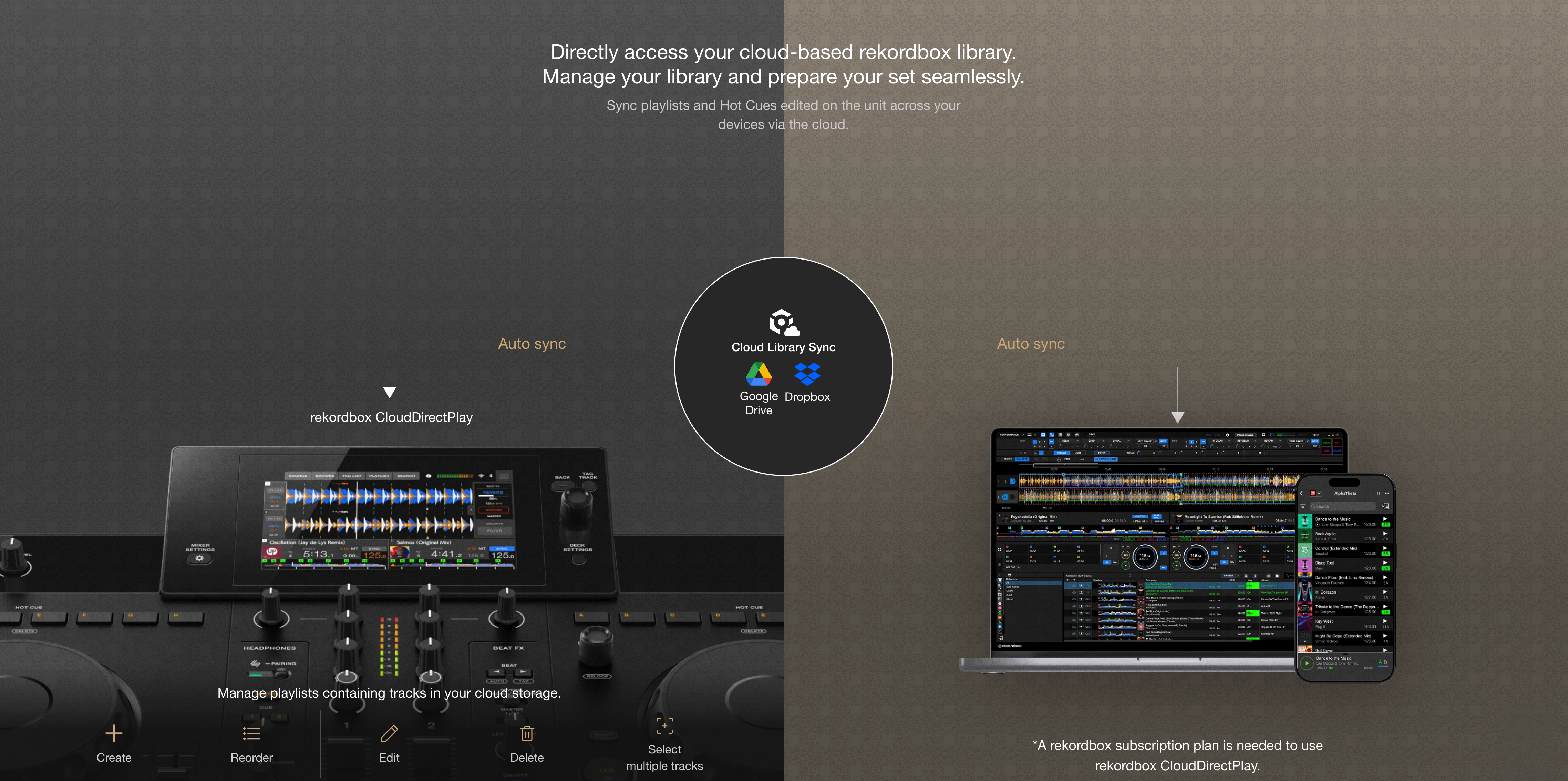

The XDJ-AN bridges the gap to club DJing with a familiar workflow that supports multiple music sources, including StreamingDirectPlay and CloudDirectPlay, for seamless cloud access.

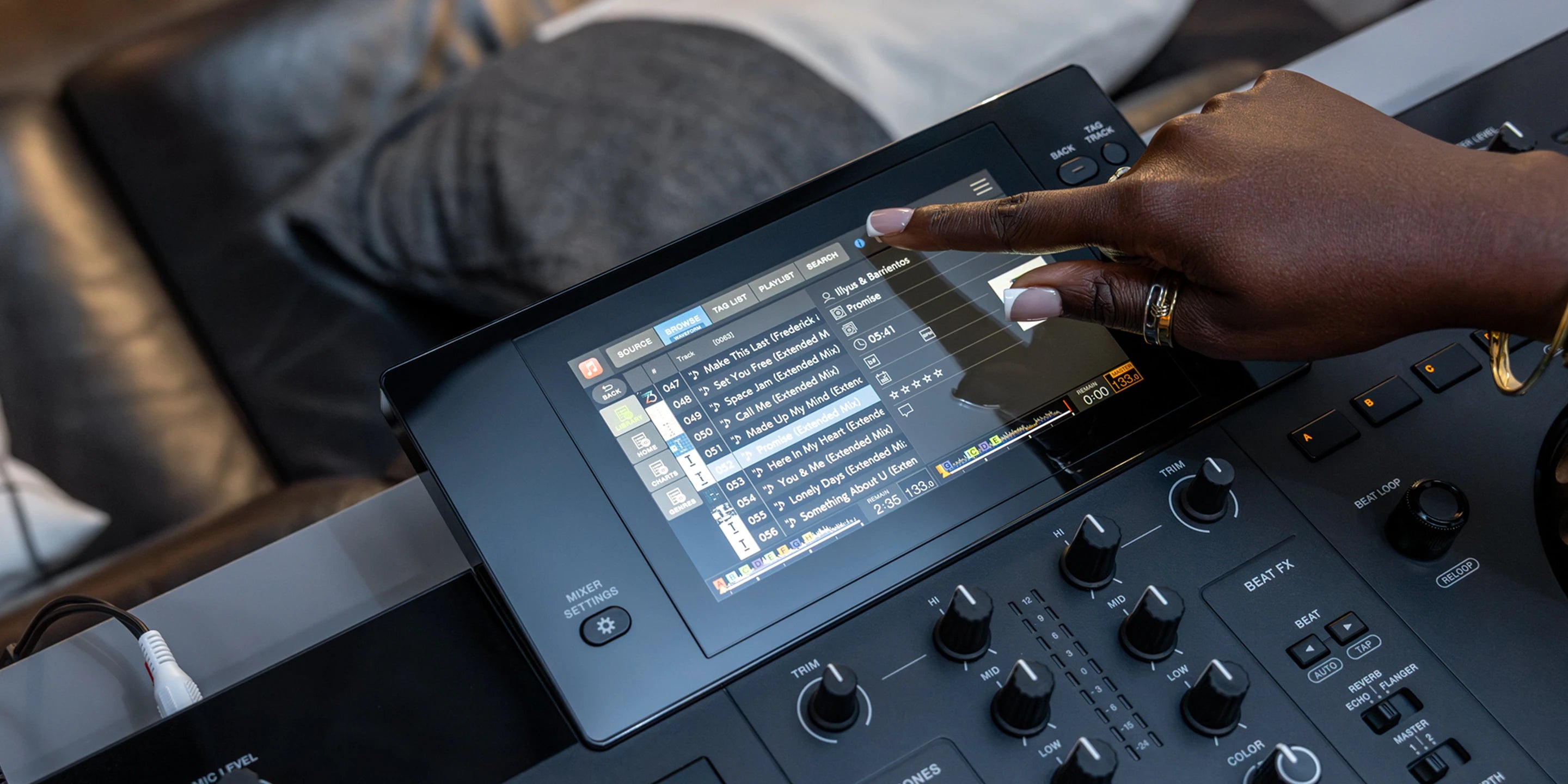

Search for tracks from streaming services, build playlists in the cloud, and take your library to the club on USB.
Touch the artist name or album of the song playing to discover your next track.

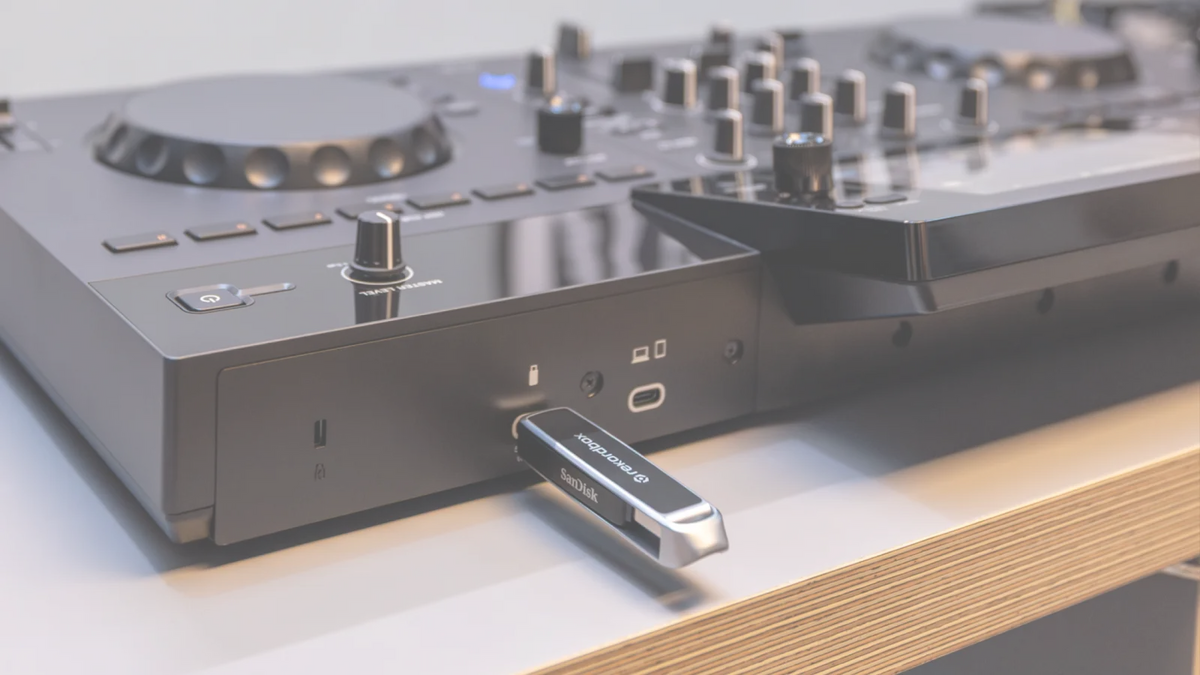

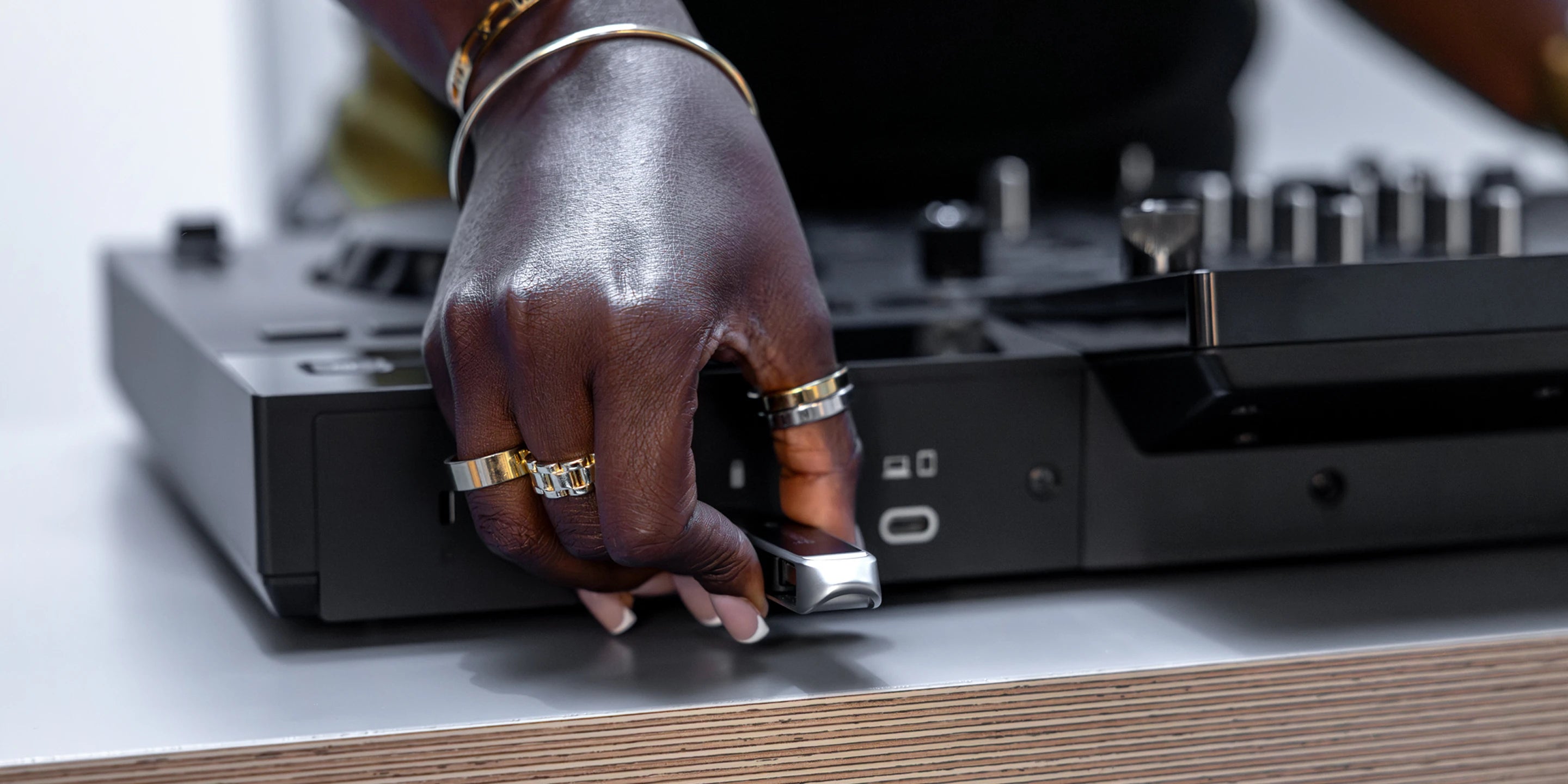

Practice at home and play live using the same USB storage device Practice at home and play live using the same USB storage device

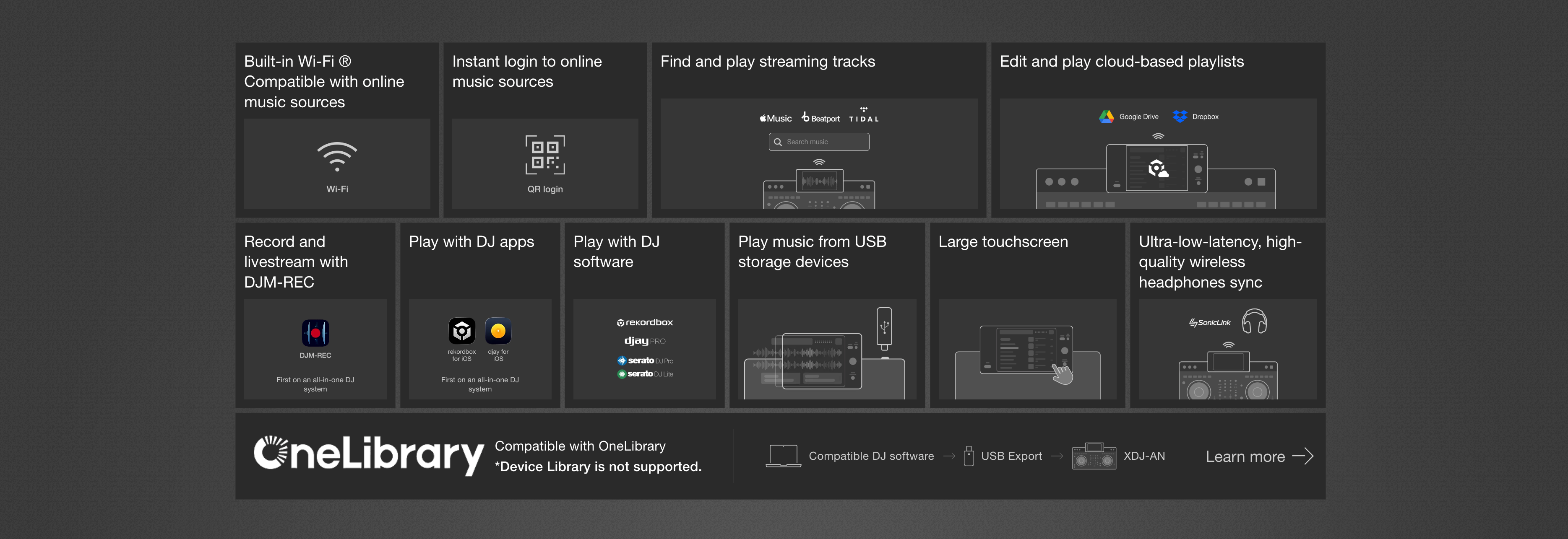

DJ with USB storage devices exported in the OneLibrary format from rekordbox or other compatible DJ software.

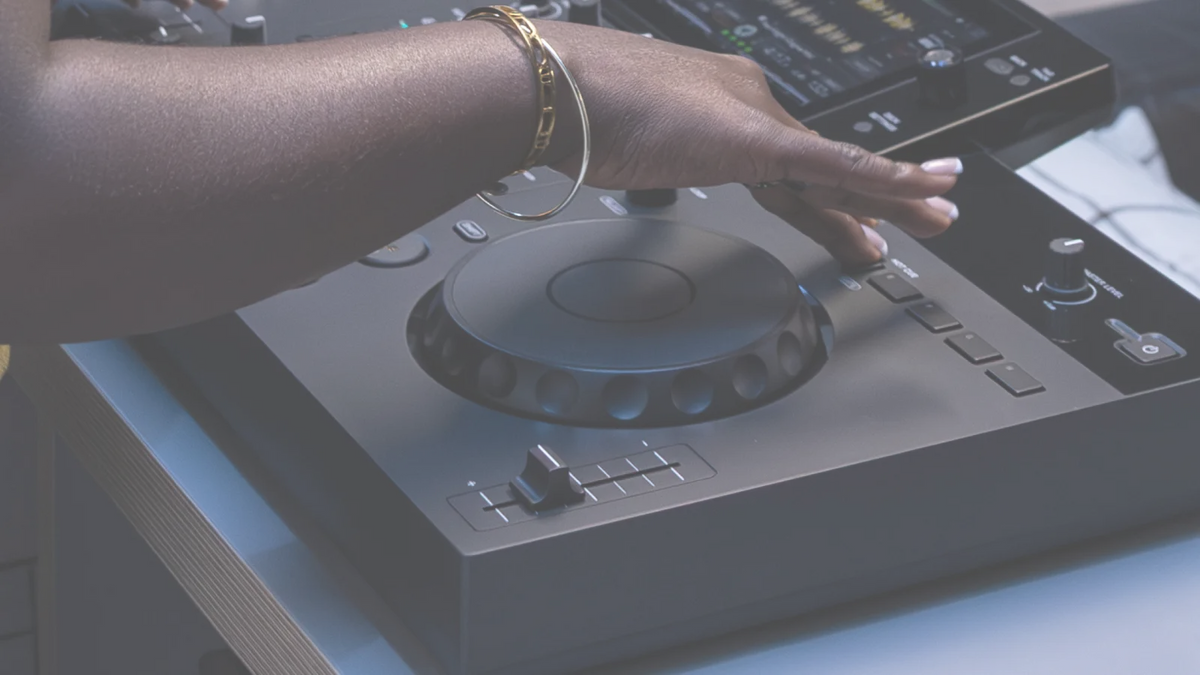

Use a club style work flow at home.
QR Code Login Screen

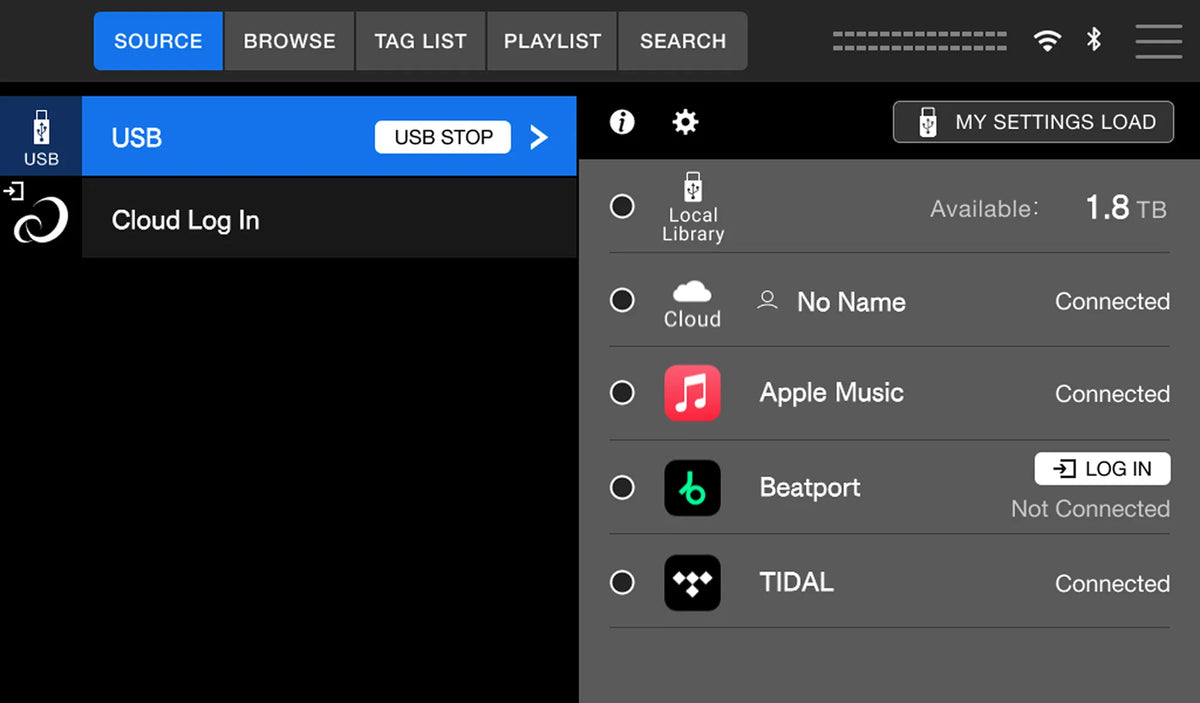

Source Screen

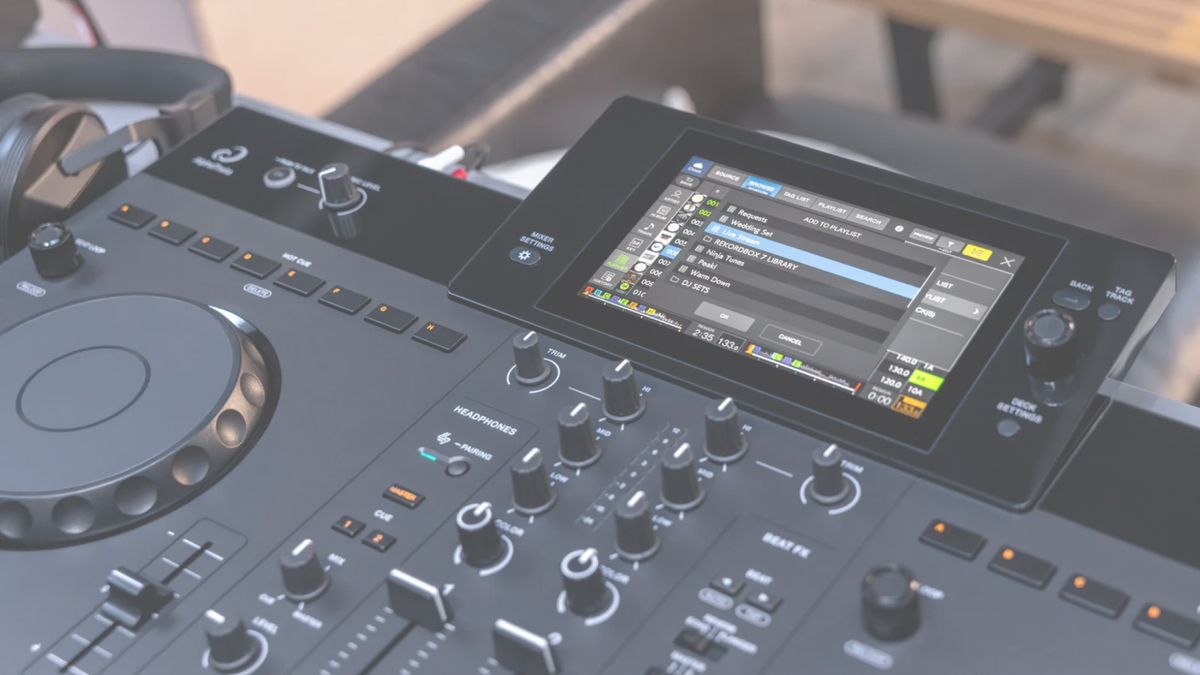

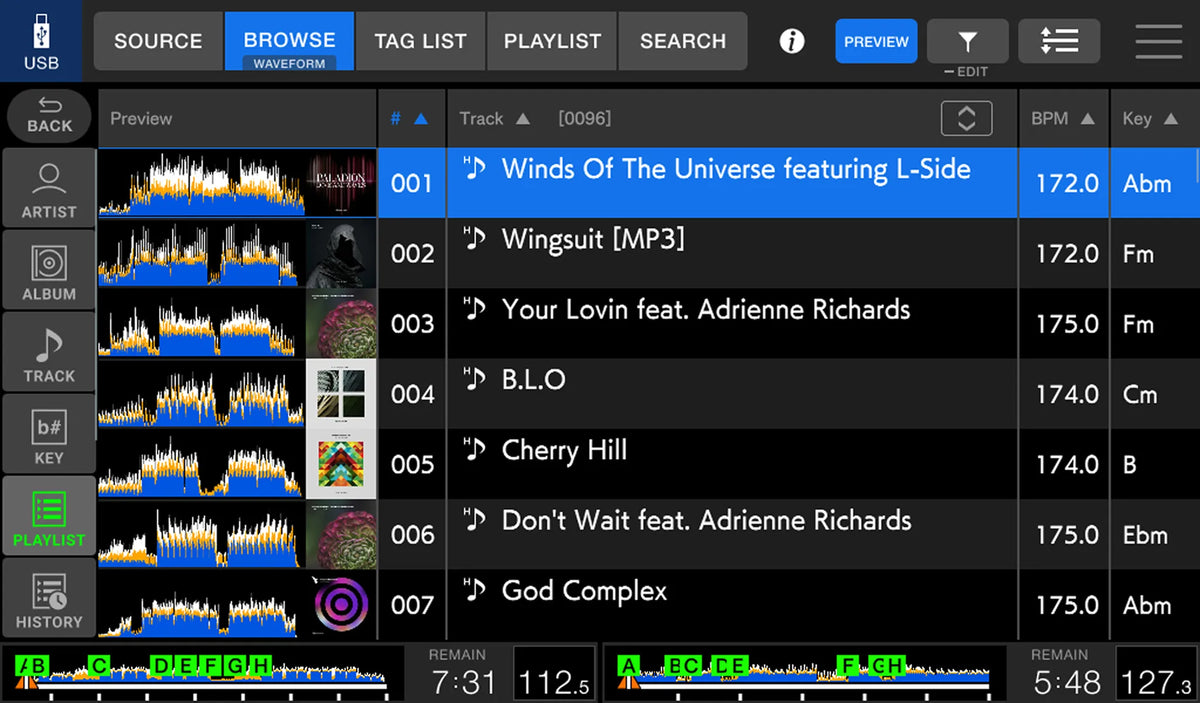

Browse Screen

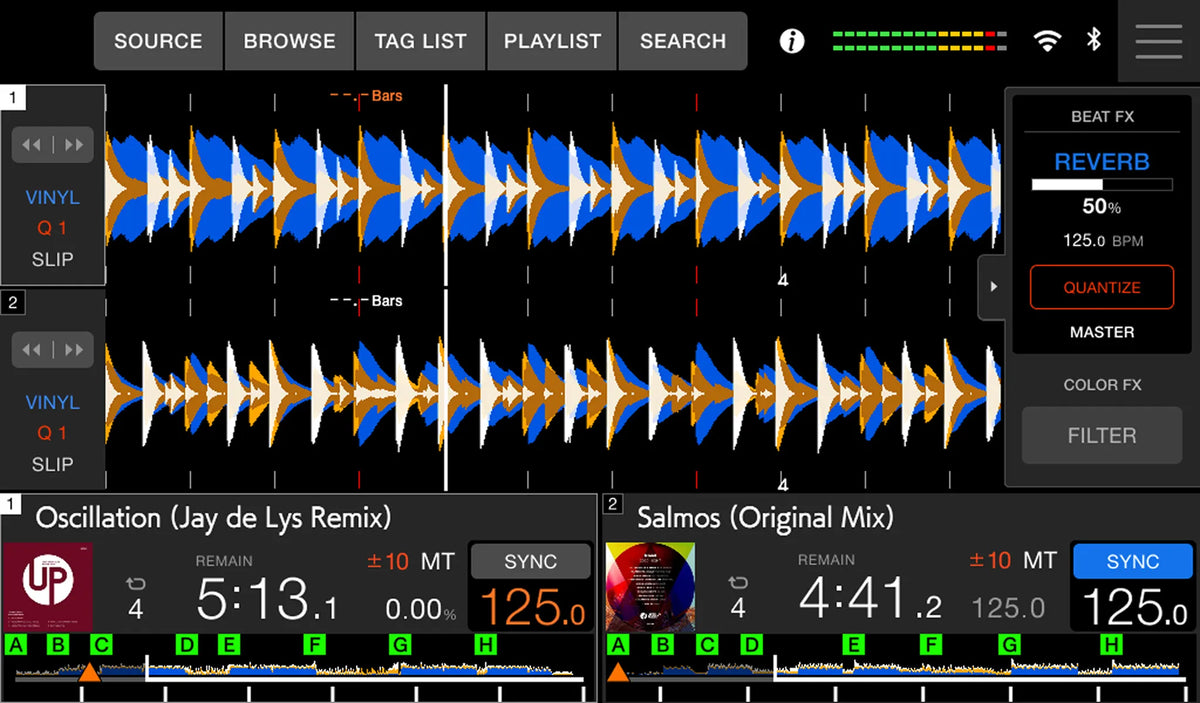

Waveform Screen

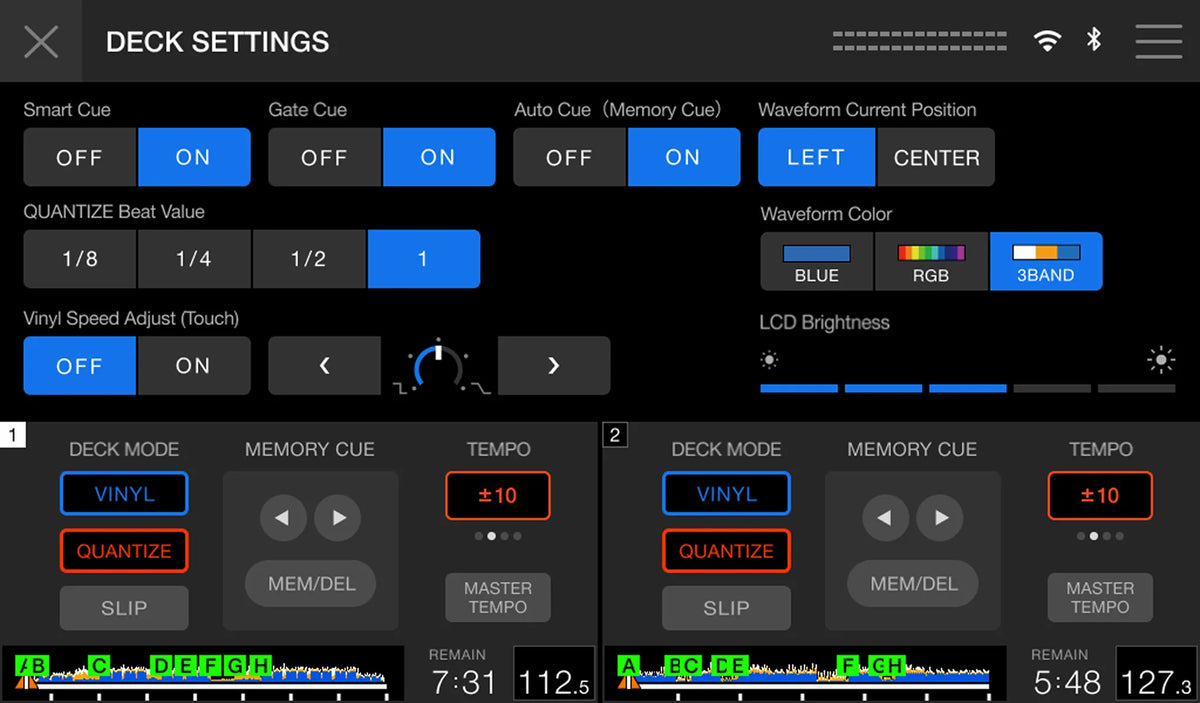

Deck settings screen

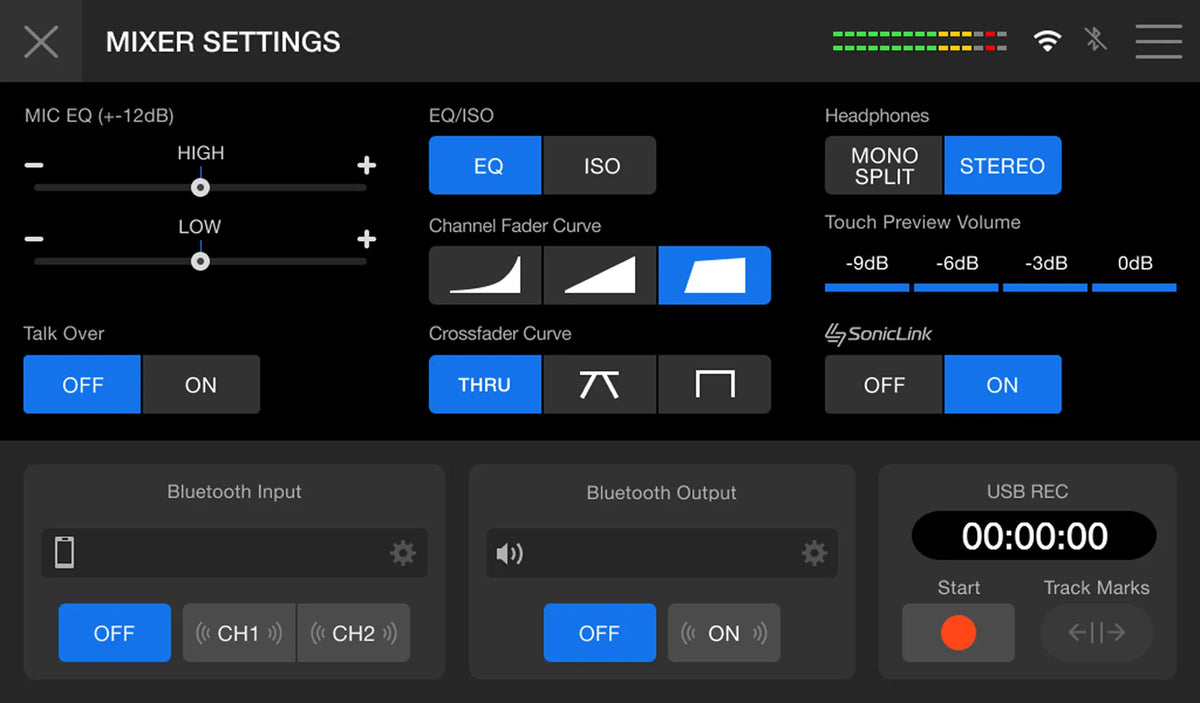

Mixer settings screen

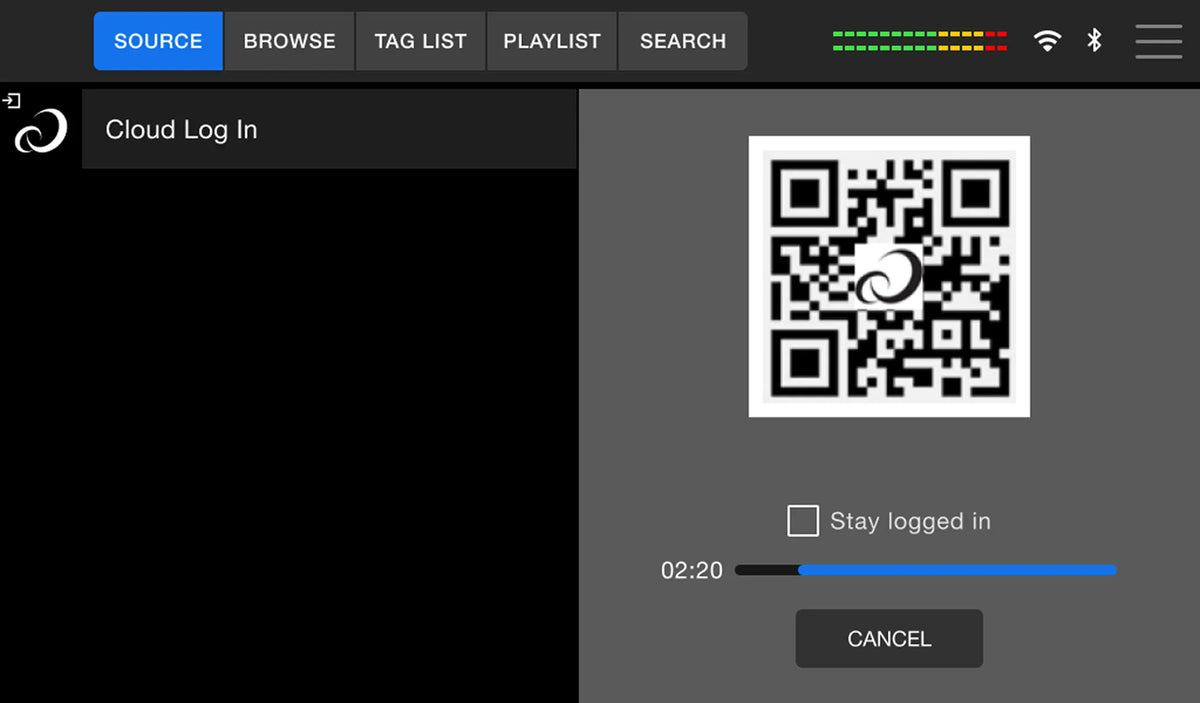

Scan the QR code to smoothly log in to your cloud-based music library or supported streaming services.
Select the music source you want to use, such as USB, cloud, or streaming.
Displays the tracklist, artwork, Preview waveform, BPM, key, and other track information.
Check the overall waveform, cues, loops, BPM, key, tempo, and other information while using Beat Jump, Sound Color FX, Sync, and other performance features.
Change common deck settings at the top of the screen and settings for each deck at the bottom.
Set the feel of the mixer to suit your DJ style.
Compare Models
Find the perfect all-in-one DJ system for your performance needs
Latest Model
XDJ-ANNext-generation all-in-one system |

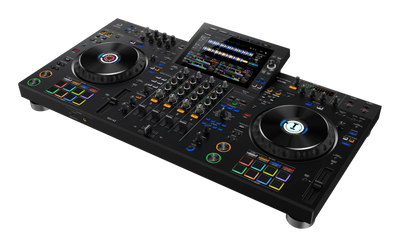

XDJ-AZProfessional all-in-one system |
|
|---|---|---|
| Hardware Specifications | ||
| Number of Channels | 4 Channels | 4 Channels |
| Deck Configuration | 2 Decks + 2 Samplers | 2 Decks |
| Touchscreen Size | 10.1 inch | 7 inch |
| Touchscreen Resolution | 1280 x 800 | 1024 x 600 |
| Connectivity & Software | ||
| Built-in Wi-Fi | ✓ | — |
| CloudDirectPlay Support | ✓ | — |
| StreamingDirectPlay Support | ✓ | — |
| rekordbox Compatibility | ✓ | ✓ |
| Serato DJ Pro Compatibility | ✓ | — |
| Bluetooth Audio Input | ✓ | ✓ |
| Performance Features | ||
| Beat FX | ✓ | ✓ |
| Sound Color FX | ✓ | ✓ |
| Hot Cues | 16 | 8 |
| Beat Jump | ✓ | ✓ |
| Slip Mode | ✓ | ✓ |
| Physical Specifications | ||
| Dimensions | 904 × 463.8 × 107.4 mm | 904 × 463.8 × 107.4 mm |
| Weight | 12.8 kg | 12.5 kg |
| Recommended Use | ||
| Recommended User | Professional & Advanced DJs | Professional DJs |
| Ideal Performance Environment | Clubs, Festivals, Mobile DJs | Clubs, Events |
Specifications
Basic Information
638 × 359.2 × 89.9 mm
5.2 kg
20 Hz – 20 kHz (USB, MIC)
112 dB (USB)
0.003 % (USB)
Included accessoriesAC adapterPower cordQuick Start GuideWarranty (for some regions) Precautions for Use

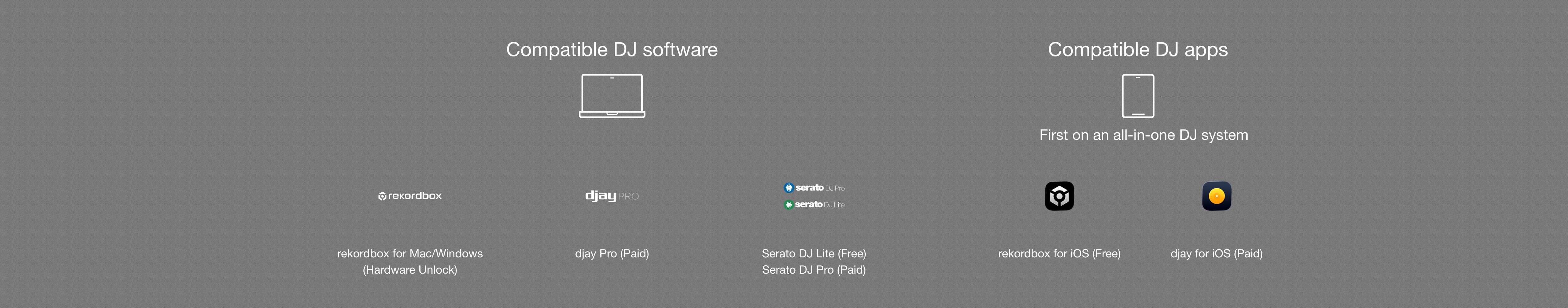

rekordbox for Mac/Windows (Hardware Unlock – no license needed)

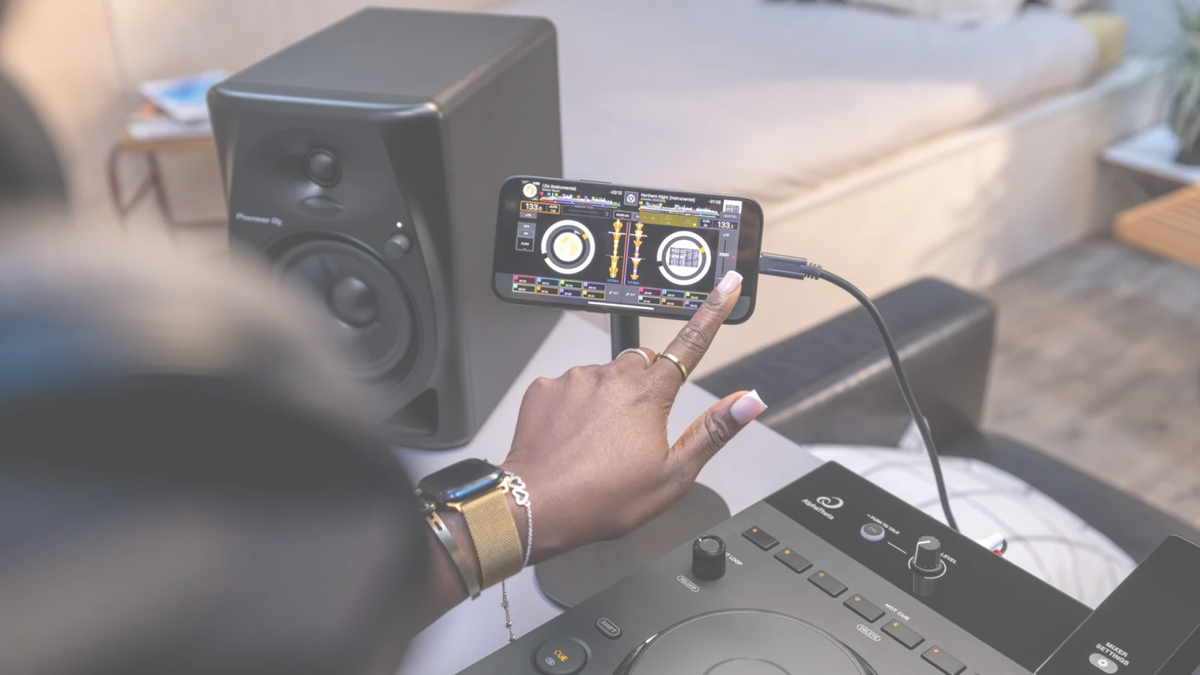

rekordbox for iOS (DJing via USB cable connection is only supported on the iOS version – no license needed)
djay Pro for Mac and Windows (subscription needed)
djay for iOS (subscription needed)
Serato DJ Lite (no license needed)
Serato DJ Pro (subscription needed)

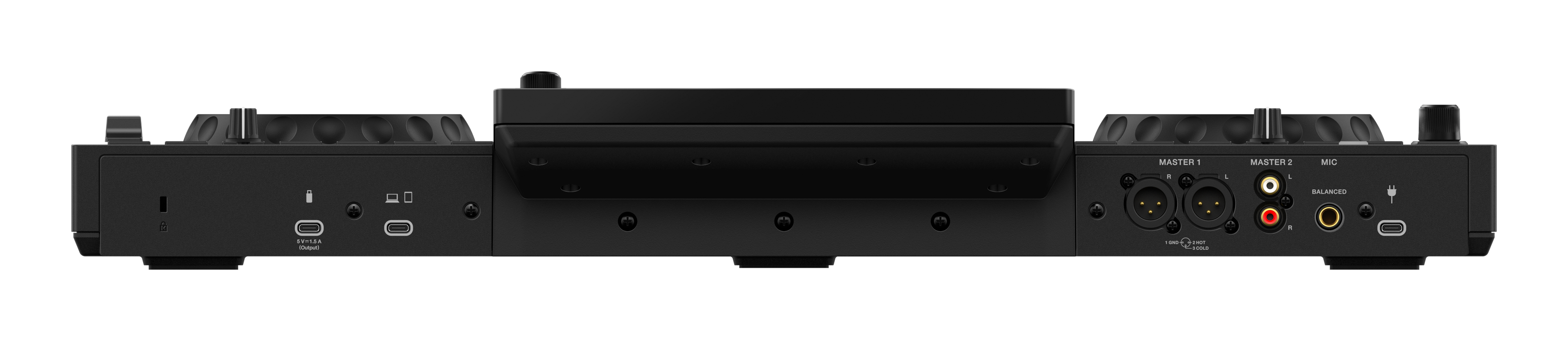

Terminals
MIC × 1 (1/4″ TRS jack)
MASTER × 2 (XLR × 1, RCA × 1)
PHONES × 1 (3.5 mm stereo mini jack)
USB Type-C × 1 (Storage)USB Type-C × 1 (PC/Mac/Mobile device)USB Type-C × 1 (Power supply)
Other
IEEE 802.11 a/b/g/n/ac
2.4 GHz / 5 GHz
Bluetooth Classic
SBC, AAC
Approx. 5 m in unobstructed locations
2.4 GHz
2
2
132 mm
7-inch touchscreen (WSVGA 1024 × 600)
・SPACE
・DUB ECHO
・SWEEP
・NOISE
・CRUSH
・FILTER
・REVERB
・ECHO
・FLANGER
